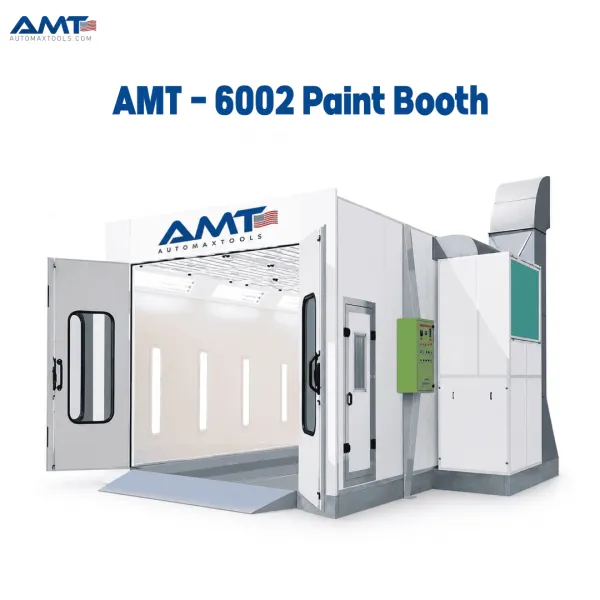

Spray Paint Booth Industrial Spray Booth: Precision, Efficiency, and Safety in a Meticulously Crafted Workspace

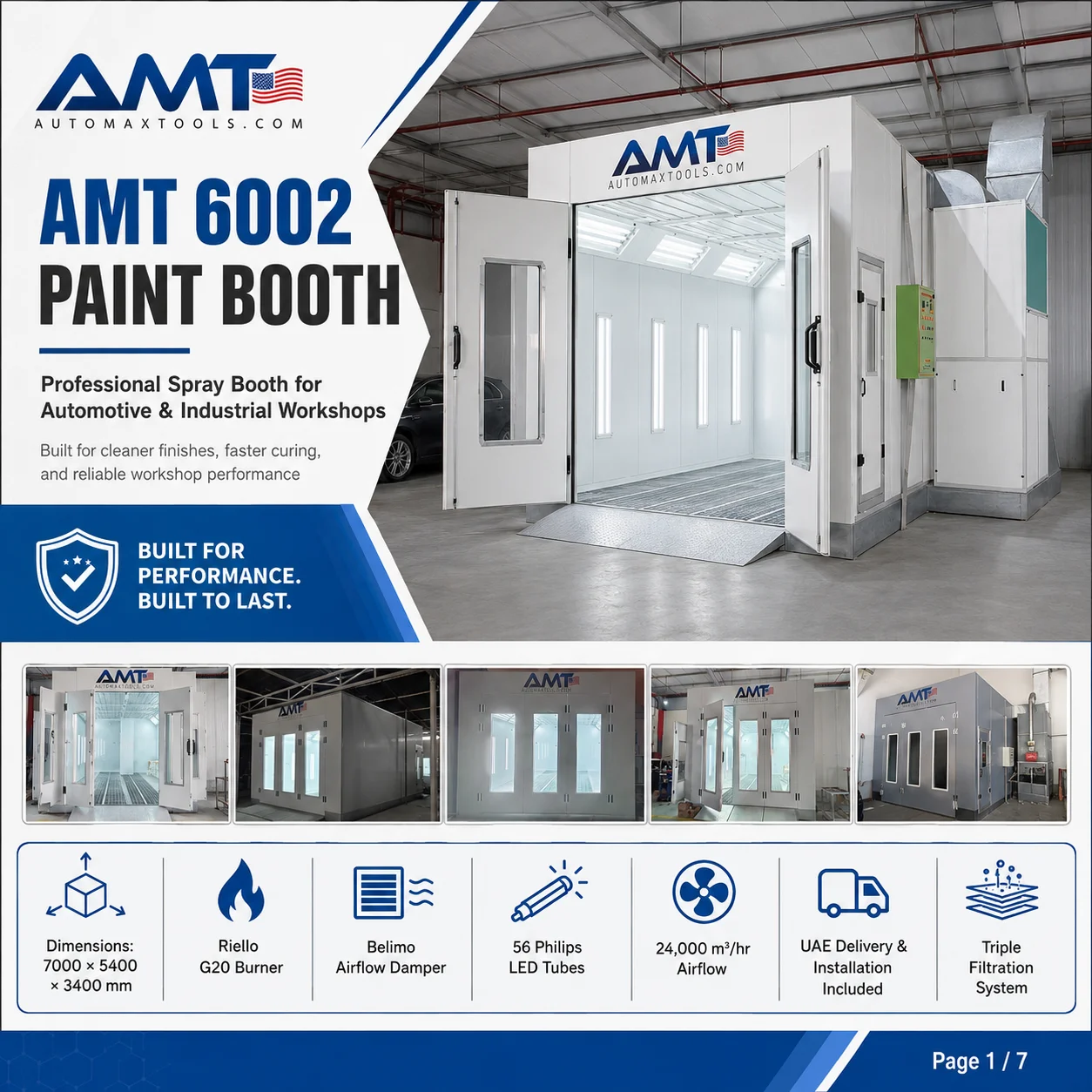

Paint Booth Dimensions and Structure

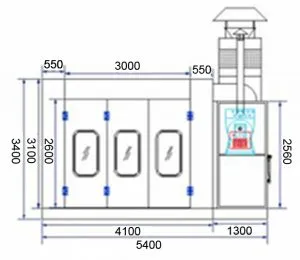

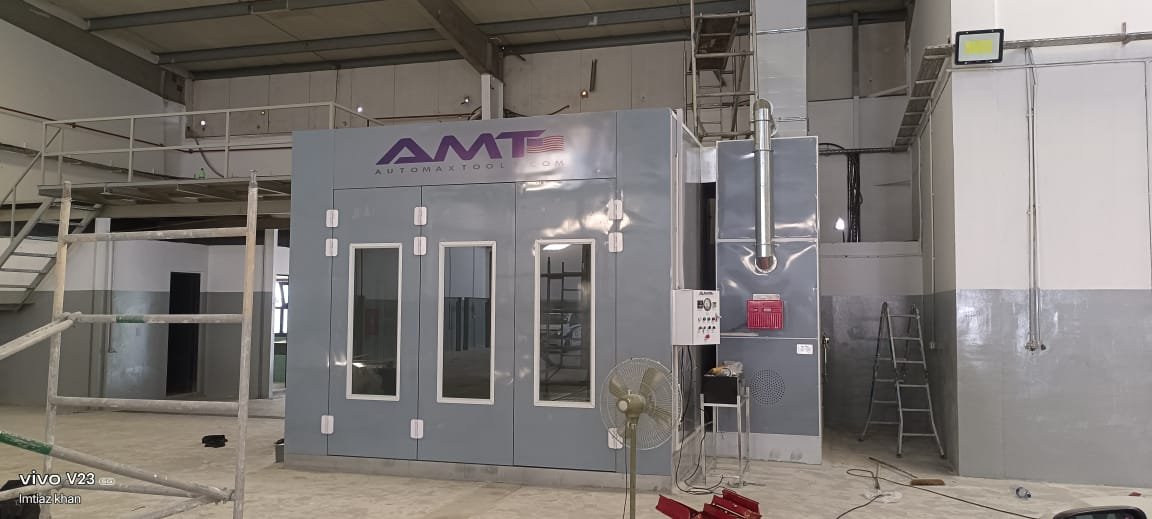

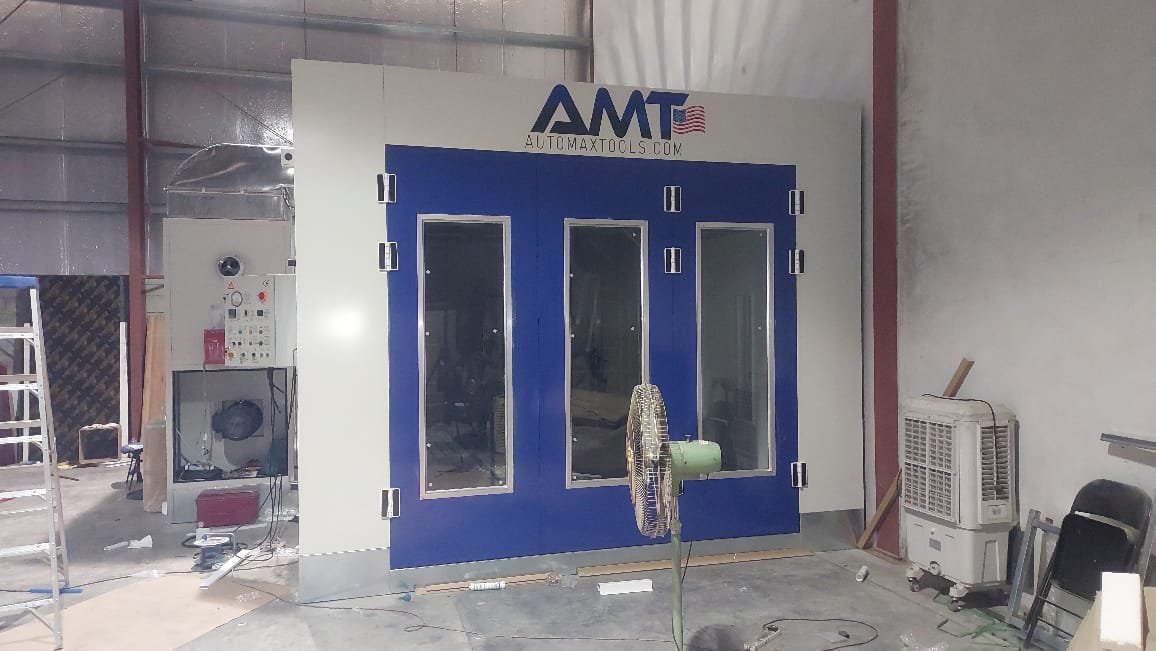

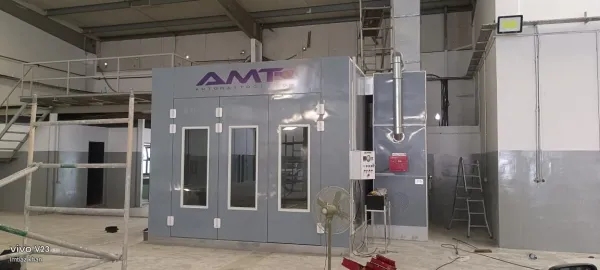

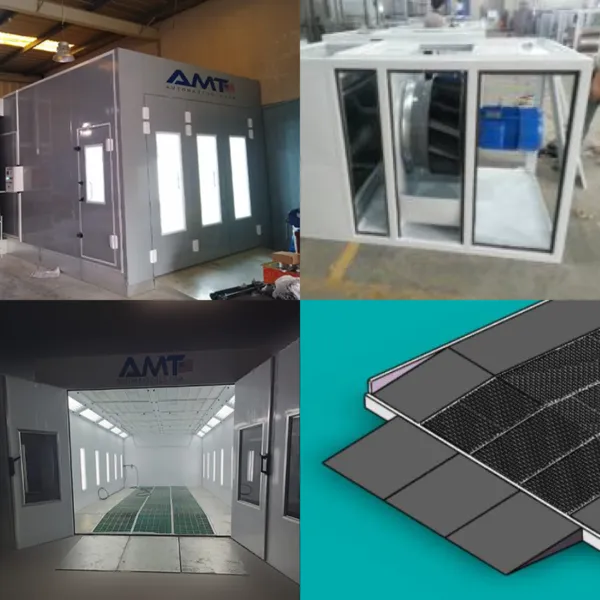

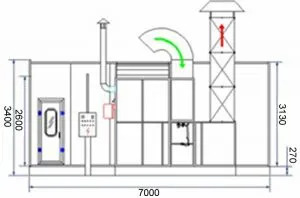

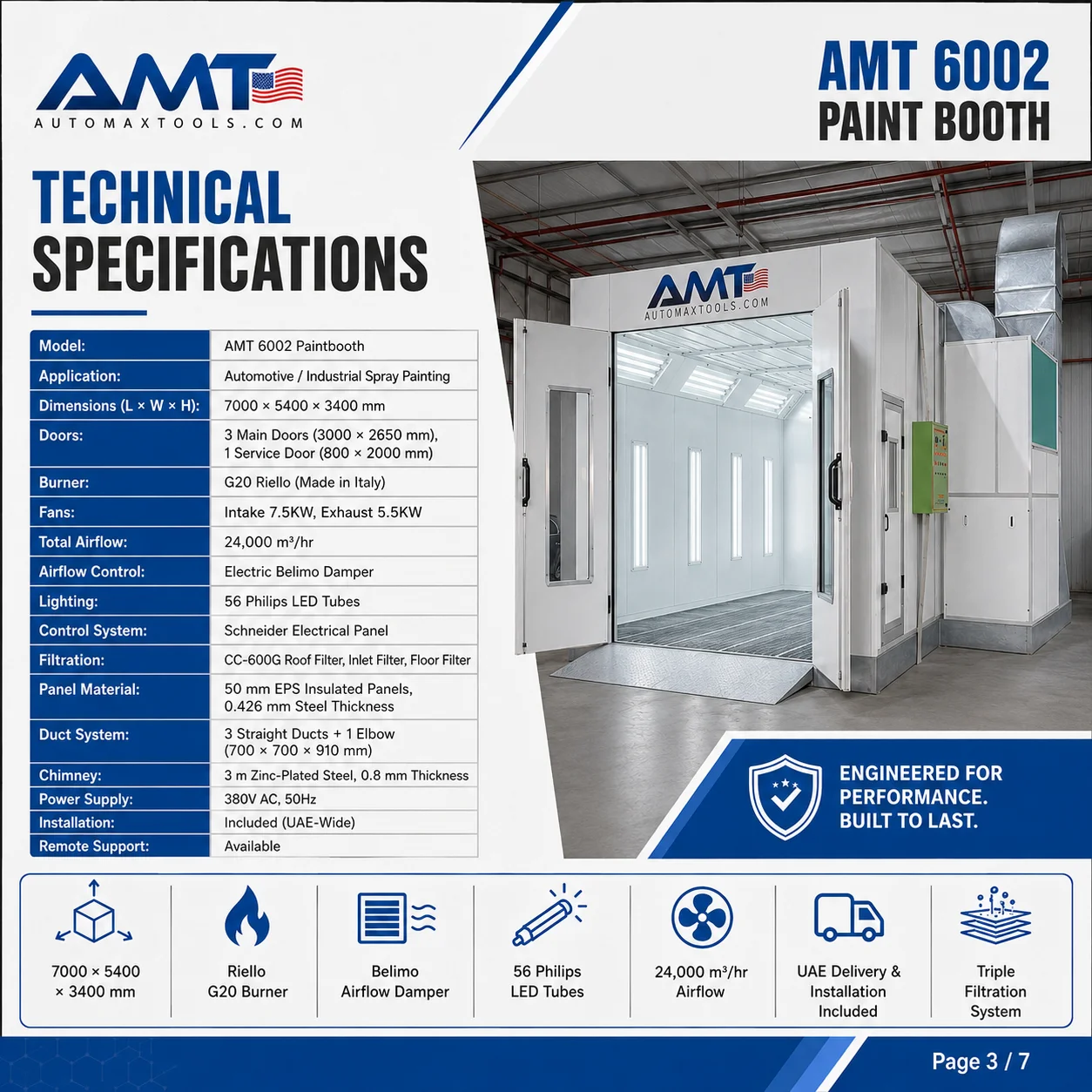

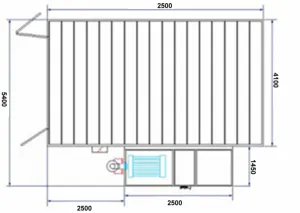

Explore an industrial spray booth meticulously crafted for optimal functionality, boasting dimensions that redefine efficiency. Measuring an expansive 7000mm in length, 5400mm in width, and 3400mm in height, this booth is thoughtfully designed to accommodate diverse industrial needs. Equipped with three main doors, each generously sized at 3000x2650mm, and a service door measuring 650x1800mm, the booth ensures not only convenient access but also an efficient workflow. The service door boasts a complete steel assembly base, dual lines of metal grills, three lines of anti-slip metal plates, and two driving ramps, enhancing both safety and versatility.
Spray Paint Booth Operational Excellence

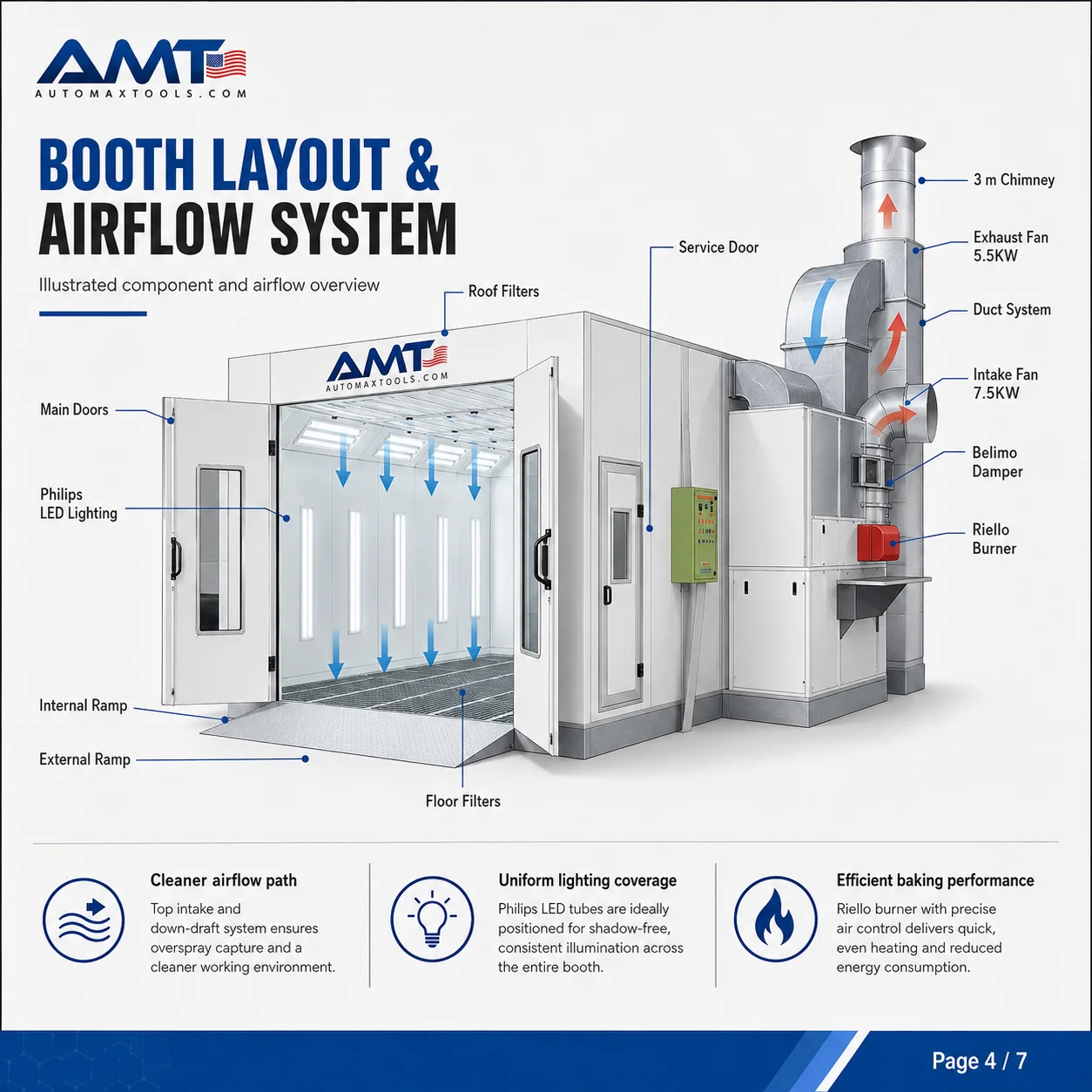

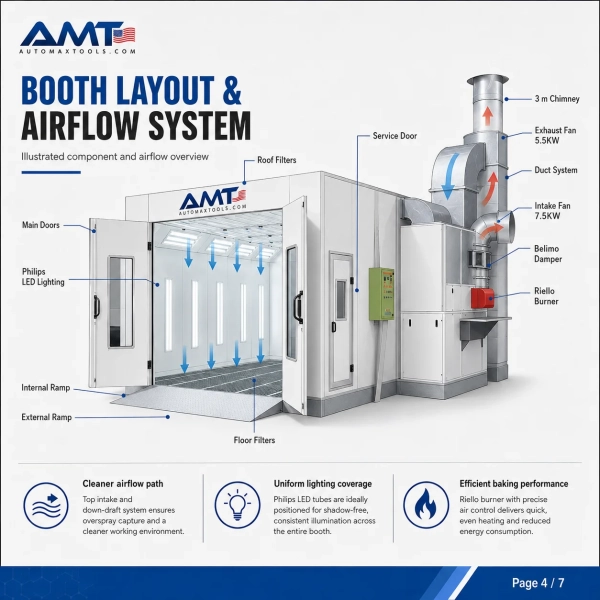

Powering this industrial marvel is the reliable G20 Riello burner from Italy, renowned for delivering precision and efficiency in industrial applications. The Electric Belimo damper, a product of Swiss engineering, seamlessly regulates airflow adjustments. Two powerful fans, featuring a 7.5KW centrifugal motor for intake and a 5.5KW counterpart for exhaust, collectively achieve an impressive airflow of 24000m3/hr, ensuring optimal ventilation for various industrial processes.
Spray Paint Booth Illumination Brilliance

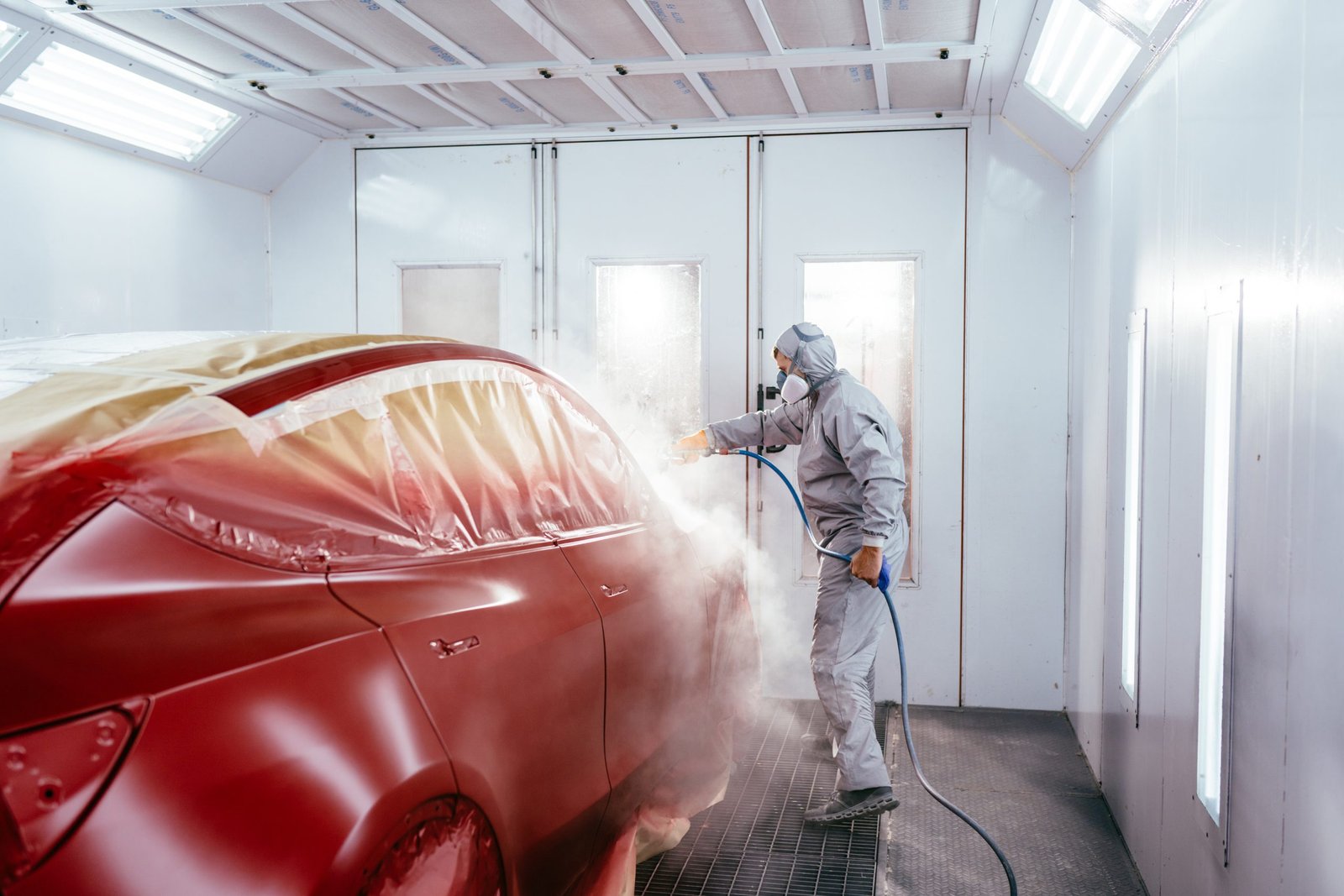

Step into a brilliantly illuminated workspace with a sophisticated lighting system. Thirty-two Philips LED lights on the roof, complemented by 20 on the sides and an additional 4 at the back, ensure optimal visibility for meticulous tasks, setting the stage for precision and quality in every operation.
Paint Booth Robust Construction and Voltage Precision
Built to withstand the demands of industrial operations, the booth’s robust construction adheres to voltage specifications of 380VAC, 50HZ. With a sturdy build featuring 50mm EPS board and 0.376mm steel thickness, this booth embodies durability, ensuring longevity and reliability in diverse working environments.
Paint Booth Control System Innovation
The heart of this industrial spray booth lies in its innovative control system, equipped with Schneider brand components. Offering comprehensive functionality, including painting, warm painting, baking, time setting, lighting control, power switch, and an urgent stop feature, this system empowers operators with precise control over every aspect of the operation. The inclusion of CC-600G roof filter, inlet filter, and floor filter further ensures a clean and contaminant-free working environment, aligning with the highest industry standards.
Paint Booth Ductwork Precision and Chimney Efficacy
The booth’s standardized ductwork, comprising three straight pieces and one elbow, each measuring 700x700x910, ensures a streamlined airflow critical for optimal performance. The 3-meter chimney, constructed with 0.8mm zinc-plated steel, stands tall to effectively extract fumes, maintaining a safe and healthy working environment.
Paint Booth Accessibility Redefined
Experience enhanced accessibility with a one-meter ramp inside and outside the booth, facilitating easy entry and exit. This thoughtful design element further contributes to the overall efficiency of the spray booth, making it an ideal workspace for a myriad of industrial applications.
In summary, this meticulously designed industrial spray booth seamlessly integrates cutting-edge technology with robust construction, creating a reliable and efficient workspace for various applications, from painting to finishing. The detailed features outlined above underscore a commitment to precision, efficiency, and safety at every step of the industrial process, making it the optimal choice for industries demanding excellence
