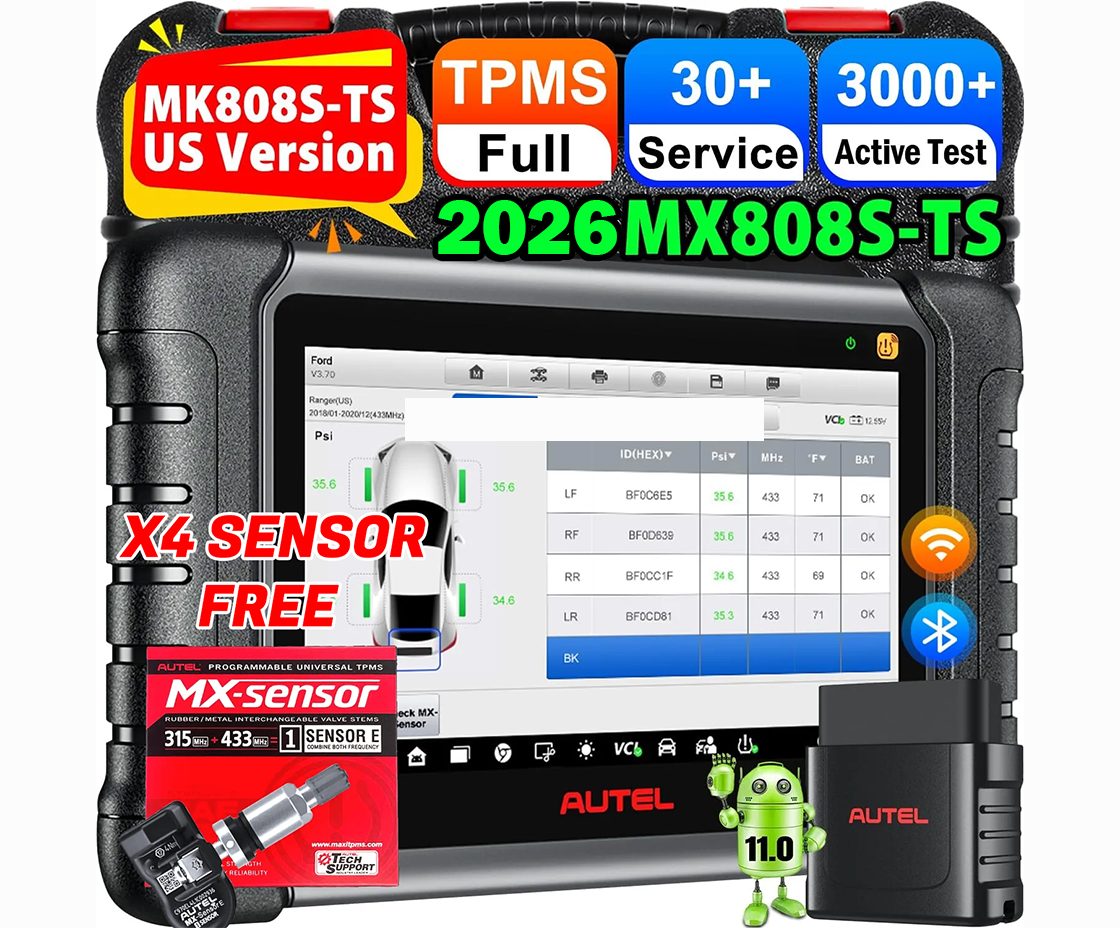

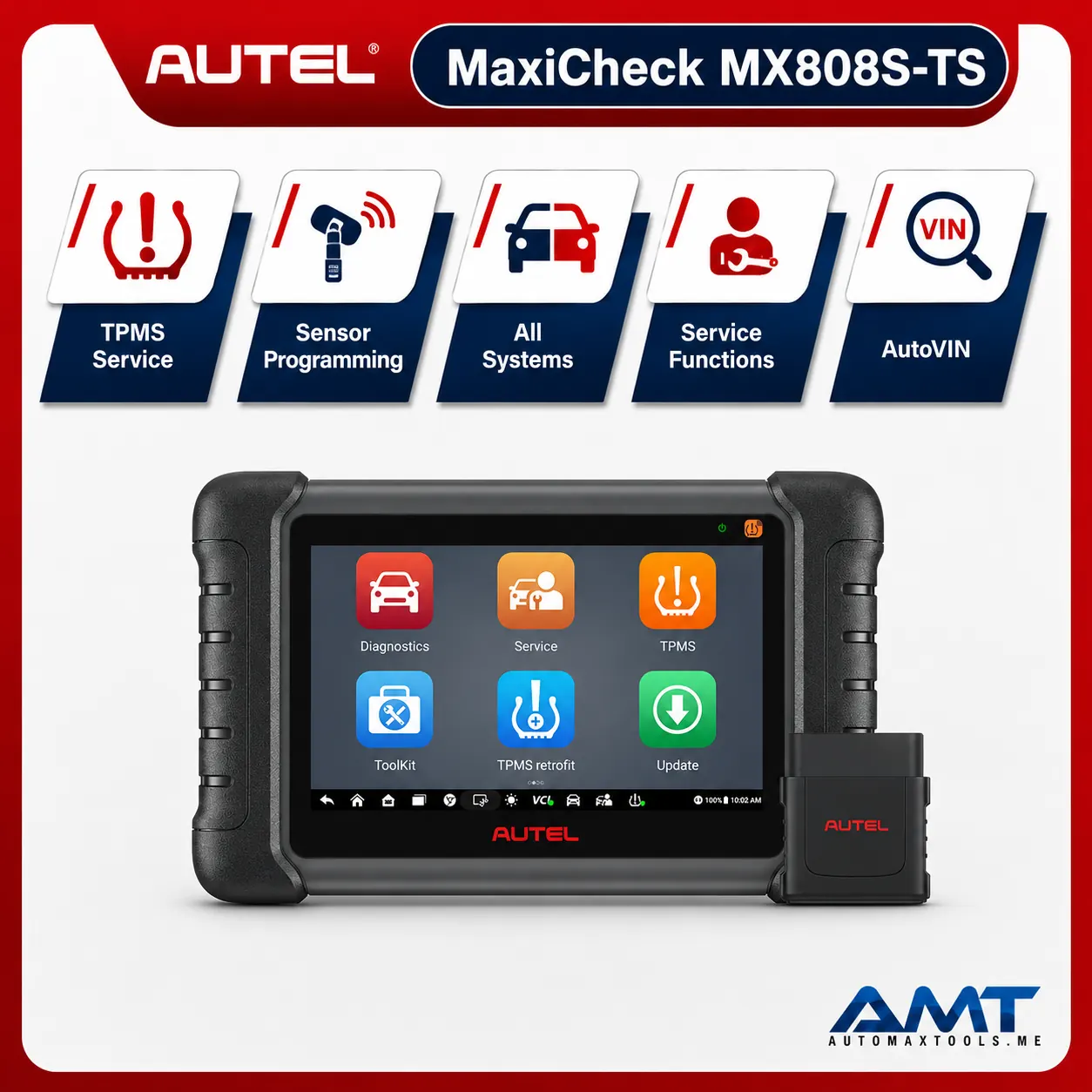

Autel MaxiCheck MX808S-TS

Description:

Autel MaxiCheck MX808S-TS Bidirectional Scanner: 2023 US Ver. of MaxiCOM MK808S-TS, Android 11 TPMS Programming/Relearn Tool, Upgraded of MK808TS/ MX808TS/ MK808S, 30+ Services, FCA AutoAuth. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCheck MX808S-TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD II diagnostics and special service, MX808S-TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and TPMS relearn.

Price:

$ 661.50

• Advanced TPMS diagnostics for complete TPMS health check

• Activate 99% of all known TPMS sensors

• Program AUTEL MX-Sensors

• Comprehensive OBD relearn coverage

• Onscreen relearn procedure

• Read/clear codes for all available systems

• Display live data in text, graph & analog for easy data review

• Auto VIN technology can automatically identify the vehicle’s make, model, and year information in no time

• Reset Steering Angle Sensor (SAS)

• Reset service mileage and service intervals

• Relearn parking brake pad after replacement

• Support forced DPF regeneration and adjusting injectors

• Support battery registration and reset

Specification

Recommended Use Indoor
Operating System Android™ 11
Processor ROCKCHIP RK3566 4 Core CPU
Memory 64GB
Display 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity Mini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB)
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A
Output: buzzer
Power and Battery 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5V/1.5A
Power Consumption 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp -10to60°C(14to140°F)
Storage Temp -20to70°C(-4to158°F)
Operating Humidity 5%-95%non-condensing
Dimensions 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight 885g(2.31|b.)
Protocols ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

Comparison

MaxiDAS
DS808
MaxiDAS
DS808TS
MX808 MX808S-TS
Read Codes
Erase Codes
Live Data
ECU Information
Active Test
Service Functions
Complete OBD Diagnostics
Oil Service Reset
Parking Brake Pad
Relearn After Replacement
Steering Angle
Sensor Relearn
Battery Registration
and Reset
Diesel Particulate
Filter Regeneration
Tire Pressure
Monitoring System
Basic Complete Basic Complete
Immobilizer Function
Advanced TPMS Diagnostics
for Complete TPMS
Health Check
Activate 98% of All
Known TPMS Sensors
Program AUTEL MX-Sensors
Comprehensive OBD
relearn coverage
On-screen
Relearn Procedure
Processor Quad-core 1.6GHz Quad-core 1.6GHz Quad-core 1.6GHz ROCKCHIP RK3566 4 Core CPU
OS Android 4.4.4 Android 4.4.4 Android 4.4.4 Android 11
Memory 1G + 32G 1G + 32G 1G + 32G 1G + 32G
Display 7″ LCD 7″ LCD 7″ LCD 7″ LCD
Battery 5000 mAh 5000 mAh 5000 mAh 5000 mAh
Internet Updatable WiFi WiFi WiFi WiFi
Multilingual Support
Historical
Test Records
Save and
Playback Data
Print Data via
Windows PC
or WIFI printer
Vehicle communication method Wired Wireless (Bluetooth) Wired Wireless (Bluetooth)

Downloads

MX808s-TS User Manual V2.0 EN190613
