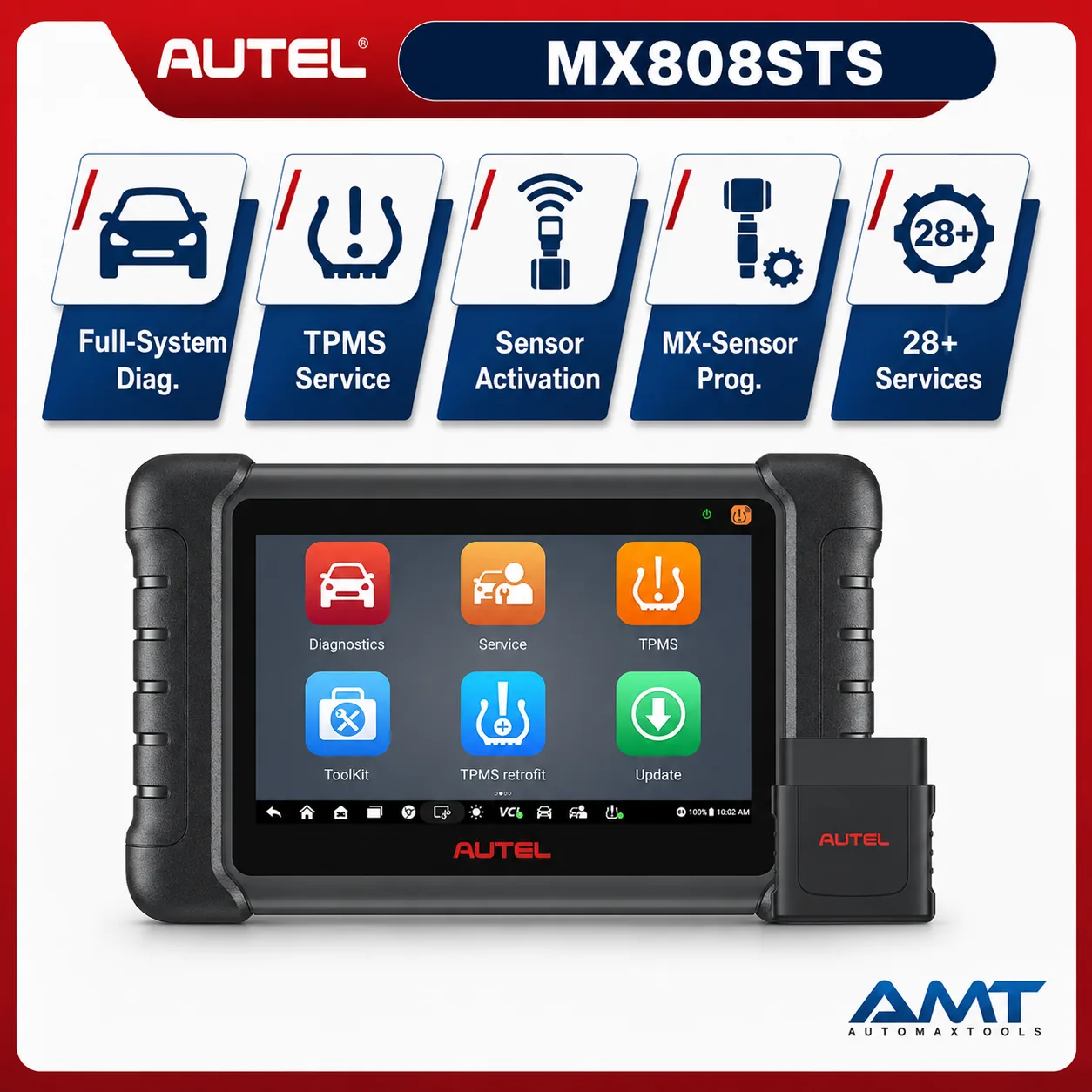

Autel MaxiCheck MX808TS

Autel MaxiCheck MX808TS 1

Description:

Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCheck MX808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) and IMMO. In addition to OBD II diagnostics and special service, MX808TS enables you to carry out complete TPMS functions, including TPMS health check, sensor activation & programming and TPMS relearn.

Price:

$ 648.00

Categories: , Tags: ,

• Advanced TPMS diagnostics for complete TPMS health check

• Activate 98% of all known TPMS sensors

• Program AUTEL MX-Sensors

• Comprehensive OBD relearn coverage

• Onscreen relearn procedure

• Read/clear codes for all available systems

• Display live data in text, graph & analog for easy data review

• Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time

• Reset Steering Angle Sensor (SAS)

• Reset service mileage and service intervals

• Relearn parking brake pad after replacement

• Support forced DPF regeneration and adjusting injectors

• Support battery registration and reset

Specification

Recommended Use Indoor
Operating System Android™ 4.4.4, KitKat
Processor Cortex-A9 processor(1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity Mini USB 2.0
USB2.0
Wi-Fi
HDMI Type A
Micro SD card slot(supports up to 32GB)
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A
Output: buzzer
Power and Battery 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5V/1.5A
Power Consumption 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp -10to60°C(14to140°F)
Storage Temp -20to70°C(-4to158°F)
Operating Humidity 5%-95%non-condensing
Dimensions(WXHXD) 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight 885g(2.31|b.)
Protocols ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

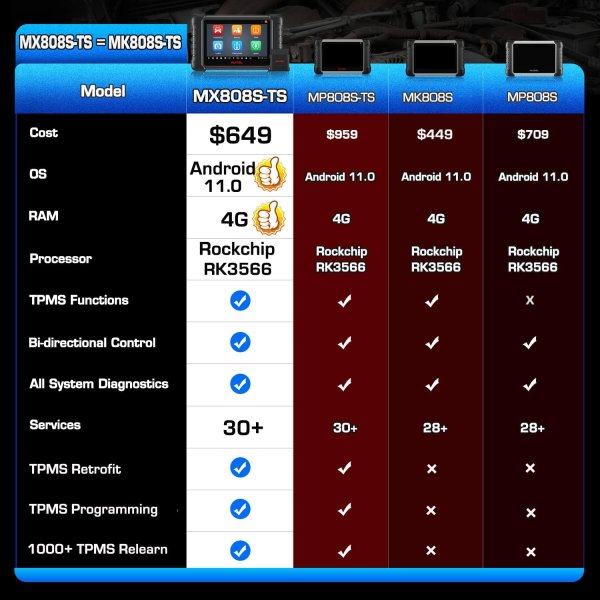

Comparison

MaxiDAS
DS808		 MaxiDAS
DS808TS		 MX808 MX808TS
Read Codes √ √ √ √
Erase Codes √ √ √ √
Live Data √ √ √ √
ECU Information √ √ √ √
Active Test √ √ — —
Service Functions √ √ — —
Complete OBD Diagnositcs √ √ √ √
Oil Serive Reset √ √ √ √
Parking Brake Pad
Relearn After Replacement		 √ √ √ √
Steering Angle
Sensor Relearn		 √ √ √ √
Battery Registration
and Reset		 √ √ √ √
Diesel Particulate
Filter Regeneration		 √ √ √ √
Tire Pressure
Monitoring System		 Basic Complete Basic Complete
Immobilizer Function √ √ √ √
Advanced TPMS Diagnostics
for Complete TPMS
Health Check		 — √ — √
Activate 98% of All
Known TPMS Sensors		 — √ — √
Program AUTEL MX-Sensors — √ — √
Comprehensive OBD
relearn coverage		 — √ — √
On-screen
Relearn Procedure		 — √ — √
Processor Quad-core 1.6GHz Quad-core 1.6GHz Quad-core 1.6GHz Quad-core 1.6GHz
OS Android 4.4.4 Android 4.4.4 Android 4.4.4 Android 4.4.4
Memory 1G + 32G 1G + 32G 1G + 32G 1G + 32G
Display 7″ LCD 7″ LCD 7″ LCD 7″ LCD
Battery 5000 mAh 5000 mAh 5000 mAh 5000 mAh
Internet Updatable WiFi WiFi WiFi WiFi
Multilingual Support √ √ √ √
Historical
Test Records		 √ √ √ √
Save and
Playback Data		 √ √ √ √
Print Data via
Windows PC
or WIFI printer		 √ √ √ √
Vehicle communication method Wired Wireless (bluetooth) Wired Wireless (bluetooth)

ABOUT

Downloads

MX808TS User Manual V2.0 EN190613

Download
