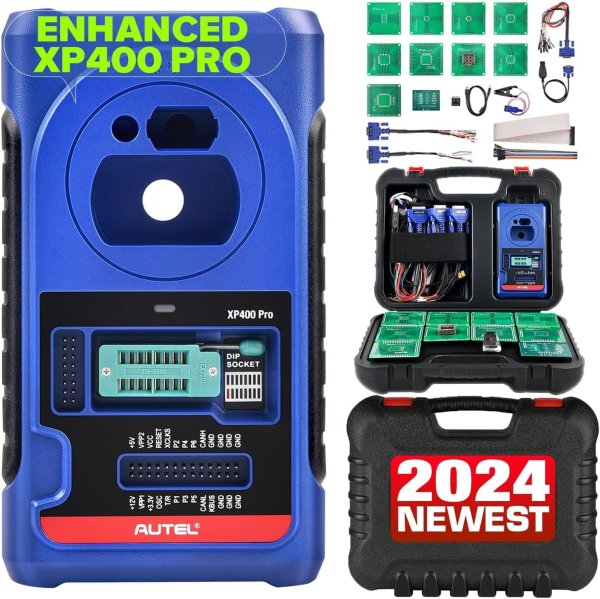

Autel XP400 VCI Dongle IMMO Key Reprogramming Tool
د.إ 2,350.00
Autel XP400 SWITCH & CHIP PROGRAMMER
XP400 can be used with Autel MaxiIIM IM508 / IM608, Auro Otosys IM100 / IM600 to do advanced key progeamming work. Note: The tablet and J2534 Box in the advertising image are for display only, do not include in the package content.
- PC Supported
- MCU / EEPROM Chip Read / Write
- ECU Read / Write
- MC9S12 Encrypted Chip Read / Write
- Key Reading / Writing
- Mercedes Infrared Key Reading / Writing
- Finding the Control Frequency
- IC Card Reading / Writing
Order on WhatsApp
Features
- 1. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
- 2. Transponder Slot – holds the transponder.
- 3. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
- 4. Vehicle Key Slot – holds the vehicle key.
- 5. IC Card Induction Area
- 6. Status LED – indicates the current operating status.
- 7. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
- 8. EEPROM Locker – locks the EEPROM component transponder slot to ensure proper functioning.
- 9. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.
Technical Information
DC Port :Â Â Provides 12 V power supply for the XP400.
USB Port:Â Provides data communication and power supply for handheld device, PC and XP400.
DB 26-Pin Port:
Five components can be connected to this port:
Mercedes Infrared Cable
APA102 – Remote Match Cable (optional)
APA104 – ECU Cable
APA105– MCU Cable
APA106 – MC9S12 Cable
APA102 – Remote Match Cable (optional)
|
No.
|
Color
|
Definition
|
Pin correspond to DB26
|
 Note
|
|
1
|
Red
|
VCC5V
|
16
|
|
|
2
|
Black
|
GND
|
3/10/25
|
|
|
 3
|
Blue and White
|
REMOTE_MISO
|
14
|
|
|
4
|
Gray and White
|
REMOTE_MOSI
|
 5
|
|
|
5
|
Brown and White
|
REMOTE_CLK
|
 23
|
|
|
 6
|
Green and White
|
REMOTE_RX_C S
|
15
|
APA104 – ECU Cable
|
 No.
|
 Color
|
Definition
|
Pin correspond to DB26
|
 Note
|
|
1
|
Red
|
VCC12V
|
7
|
|
|
2
|
Black
|
GND
|
25
|
|
|
3
|
Green
|
IGN
|
/
|
|
|
4
|
Orange
|
CANL
|
8
|
|
|
5
|
Blue
|
CANH
|
17
|
|
|
6
|
Brown
|
BOOTM
|
/
|
|
|
7
|
Yellow
|
K
|
18
|
|
|
8
|
White
|
LIN
|
26
|
APA105 – MCU Cable
|
No.
|
Color
|
 Definition
|
Pin correspond to DB26
|
 Note
|
|
1
|
Red and White
|
VPP1
|
20
|
|
|
2
|
Red and Black
|
VPP2
|
12
|
|
|
3
|
Red and Yellow
|
+12V
|
7
|
|
|
4
|
Red and Blue
|
VPPR
|
/
|
|
|
5
|
Black
|
GND
|
25
|
|
|
6
|
White
|
S1
|
14
|
|
|
7
|
Brown
|
S2
|
5
|
|
|
8
|
Gray
|
S3
|
23
|
|
|
9
|
Blue
|
S4
|
11
|
|
|
10
|
Red
|
S5
|
21
|
|
|
11
|
Orange
|
S6
|
13
|
|
|
12
|
Purple
|
S7
|
4
|
|
|
13
|
Yellow
|
S8
|
19
|
|
|
14
|
Green
|
S9
|
2
|
|
|
15
|
Black
|
GND
|
10
|
Shielded Twisted
|
|
16
|
White
|
OSC
|
1
|
Shielded Twisted
|
APA106 – MC9S12 Cable
|
 No.
|
 Color
|
 Definition
|
Pin correspond to DB26
|
 Note
|
|
1
|
Red
|
+5V
|
16
|
|
|
2
|
Black
|
GND
|
25
|
|
|
3
|
Green
|
XCLKS
|
2
|
|
|
4
|
Blue
|
T/R
|
11
|
|
|
5
|
Yellow
|
RESET
|
19
|
|
|
6
|
Black
|
GND
|
10
|
Shielded Twisted
|
|
7
|
White
|
OSC
|
1
|
Shielded Twisted
|
Cross-shaped Signal Pin: Places MCU board, MCU spare cable or DIY signal cable to read or write MCU and ECU chips.
IC Card Induction Area: Reads and writes IC card information.
Vehicle Key Slot: Holds the vehicle key to read or write vehicle key information.
Transponder Slot: Holds the transponder to read or write transponder information.
Remote Control Transponder Induction Area: Reads and writes remote control transponder information.
Mercedes Infrared Key Slot: Holds Mercedes infrared key to read or write Mercedes vehicle key information.
Status LED: Shows the current operating status of the XP400. See the table below for detailed description.
Â
|
Indicator
|
Status
|
Description
|
|
Â
Â
On
|
Light Green
|
Powered on and default
|
|
Flash Green
|
Communication
|
|
|
Light Red
|
Error
|
Locker :Â Places EEPROM chip or socket to read or write EEPROM information.
EEPROM Component Transponder Slot : Holds the EEPROM plug-in transponder or EEPROM socket.
Autel XP400 Adapter Parameter
|
Item
|
Description
|
|
Operating Temperature
|
-10℃ ~ 60℃ (14℉ ~ 140℉)
|
|
Storage Temperature
|
-20℃ ~ 60℃ (-4℉ ~ 140℉)
|
|
Port
|
Mini USB, VGA_DB15
|
|
Input Voltage
|
5 VDC
|
|
Operating Current
|
< 250 mA
|
|
Maximum Consumption
|
1 W
|
|
Device Dimensions (L*W*H)
|
130 mm * 68 mm * 28 mm
|
|
Package Dimensions (L*W*H)
|
201 mm * 167 mm * 75 mm
|
|
Net Weight
|
466 g
|
