G-scan3 – Compact Kit

g-scan3-compact-kit
g3-base-unit
main-dlc-cable
self-test-cable

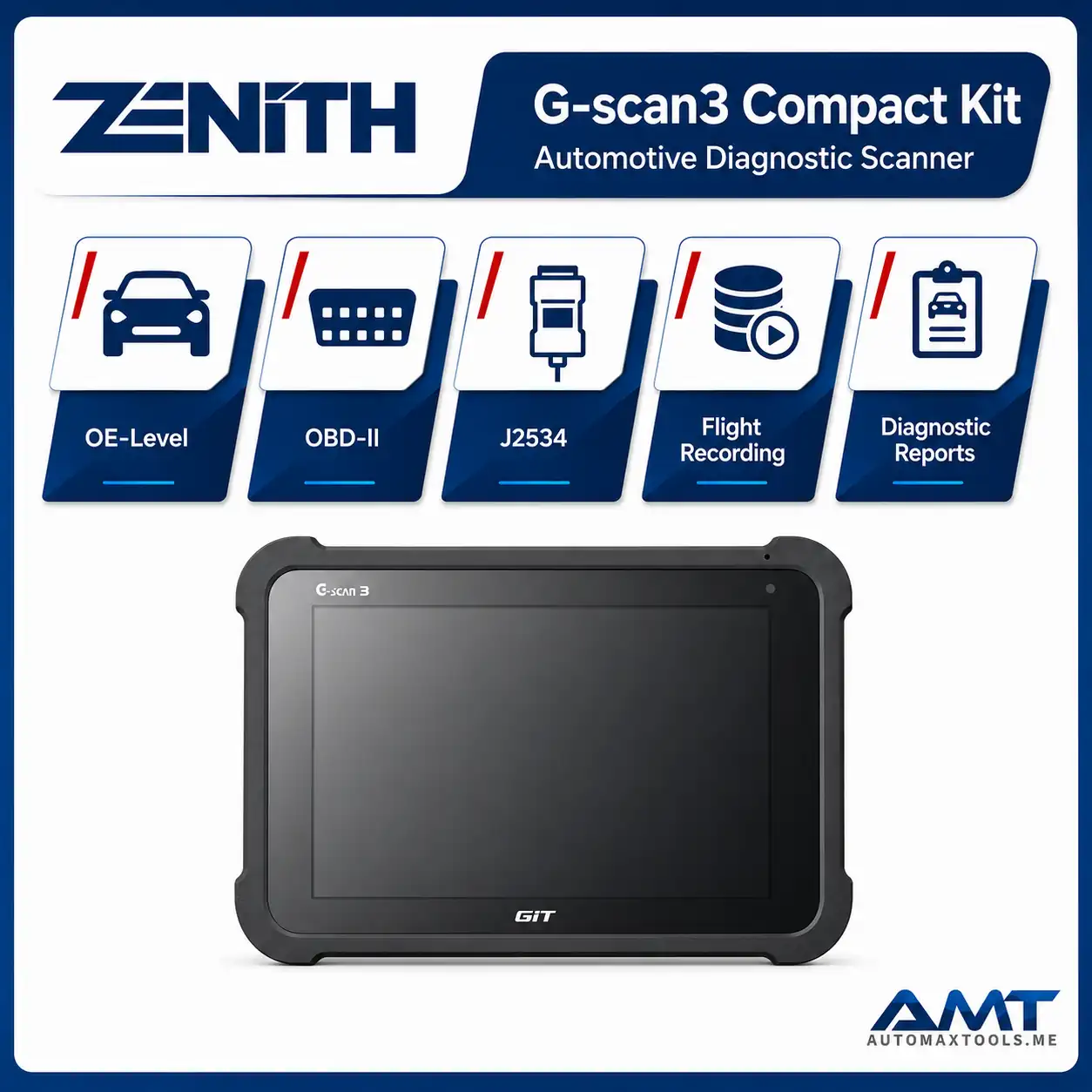

G-scan3 - Compact Kit 1

Description:

(2 customer reviews)

Experience the New G-scan3

Built around an Android OS with an Octa-core 2.1 GHZ CPU, integrated with advanced diagnostic features and unparalleled functions, the G-scan3 will provide you with the ultimate user experience.

1 Year Warranty / 1 Year Free Software Update

Price:

SKU Diagnostic Scan Tool - Compact Kit Categories: , Tags: , , ,

Features

Higher Performance CPU

Equipped with a powerful Samsung’s Exynos 7420 Octa-core processor for an ideal management of workshop operations to keep all vehicle records, customer information, and other necessary images and data.

Smarter and Faster Operating System

Based on the Android 6.0 system provides improved user interface and experience for fast boot-up, multi-tasking, better networking and enhanced system security.

Capacitive Touch Screen on 10.1” LCD

User Interface through a capacitive touch screen technology provides the easiest and the most intuitive use of the diagnostic scan tools and its multiple functions. High resolution TFT screen offers greater readability and convenient touch-screen operation.

Extensive Storage Capability

The internal flash of 64GB accommodates software applications and data for all brands with room to spare, and the external memory space up to 128GB allows an extensive storage for saving images and recorded data.

Powerful Oscilloscope

Measures the voltage or amperage signals of the vehicle’s sensors and actuator circuits to display these signals on the high resolution 4 trace scope.

Pre & Post Diagnostic Report

Designed to easily create a diagnostic report. The pre-scan report will highlight any issues that vehicles have, while the post-scan report will confirm that they have been resolved properly.

24V Commercial Vehicles

Designed to support the 24V commercial vehicles systems, make direct connection to the buses and trucks. (Not available for US and Canada)

Wireless Connectivity

Wi-Fi connection to the Internet allows for smart updates, quick feedback, TeamViewer support, wireless printing option, browsing and many more.

J2534 Pass-thru

Serves as a “Pass-thru” device for programming the ECUs on both Hyundai and Kia vehicles ( No domestic Korean vehicles, Only for U.S and Europe )

Rechargeable Battery

Equipped with a rechargeable 6300 Ah battery. Besides the possibility to use the G-scan without an external power supply for hours, it also enables the advanced diagnostic functions that need to crank the engine.

Specifications

Category Specifications
CPU Exynos 7420 Octa Core @ 2.1 GHz
Operating System Android 6.0
System Memory Internal Flash 64GB, RAM 3GB
External Memory Micro SD Card (max. 128GB)
LCD 10.1″ TFT (1280 x 800 pixel)
Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Function 1, Function 2)
Camera Rear 13MP, AF, Flash Light
Sound Speaker(mono), Microphone and Earphone Jack
Rechargable Battery Li-ion Polymer, 6300mAh (3.7V), Hard Pack
Operating Voltage DC 9 ~ 30V
Sensors Gyro-sensor, Acceleration sensor
Dimension 304 x 208 x 35.5mm
External Port USB 2.0 Host 1ea, Host & Slave 1ea
Video Out HDMI
Network RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.0

AC/DC Adapter

Category Specifications
Input Power 100 ~ 240V AC
Frequency 50 / 60 Hz
Input Current 0.8 A
Output Voltage 12V DC
Output Current 3 A

Diagnostic Function

Diagnostic Report Function

Allows the users to create a report with Pre-scan and Post-scan result. Not only the users can save the reports as PDF file in G-scan 3’s memory; also with a help of Bluetooth and Wi-Fi technology, users can simply print directly or send them to desired E-mail address.

diagnostic-report-function

J2534 Pass-thru

Supports ECU reprogramming on both Hyundai and Kia vehicles in J2534 pass-thru mode. It also operates as a J2534 pass-thru terminal for other vehicle manufactures supporting J2534 programming and diagnostics. This requires OEM-specific diagnostic software and the mode can be used by CAN-Bus, KWP2000, and ISO9141 protocols. ( exceptions may apply )

Simple Menu Structure

No hassles for locating the metal tag and finding the correct engine codes. Simply select the diagnostic connector type before selecting the system to test when testing Japanese vehicles. No model Code, No Engine Code, No detailed menu selections are required.

System Auto Search

No time consuming DTC search by “trial and error”, G-scan provides auto search function that tries to communicate with “ALL” systems in the car automatically. It reports back with the available system list and the number of DTCs’ of each system.
( Note : Not all vehicle selection menus provide the system and auto search )

Full Text Description

Thanks to screen control flexibility of Android system and its 1280 pixels wide screen, the full description of DTC codes and data parameter names are supported with G-scan. If longer than the screen, the full description appears in a pop-up window.

Flight Record & Graphical Display

Diagnostic data can be recorded on the road test while the car is running the real driving condition. And recorded data (Flight Record) can be replayed both on G-scan or the larger PC screen. Also, these data can be displayed in graphical waveforms.

Handwritten Memo & Instant Screen Capture

Press the “View Finder” button on the bottom right corner, the current screen play is captured immediately and you can put your own handwritten memos and drawings by using the fingers or stylus pen. The captured image and the memo are saved in the memory for your retrieval. You can either send the image data to a printer to print or transfer to the PC or phone via bluetooth pairing connection.

Self-Test Function

Many of field failures are found caused by the defective cable and connector, or the problems on the vehicle side. It gives huge impact on sales by causing complaints of the customers and negative influences by the unsatisfied users. G-scan provides “self-test function” that helps the users to determine whether the communication problem is caused by the base unit’s internal hardware / software reasons or by the external factors. It helps you to keep focused on sales, not on taking care of grumbling customers.

Hyundai and KIA OEM S/W

Complete OEM software package is included (except ECU reprogramming), Select Hyundai or Kia from the Menu. Users can enjoy the complete function and performance of OEM tool for Korea’s leading brands.

Data log and quick feedback support

In cases of communication or function failure, users can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the engineers through the log transfer function within the G-scan 3 device. The given data log files will be analyzed, feedback and patch file update may provided within 24 hours during workdays; when necessary.

Components

Standard Kit
Optional Asian Car OBD Adapters
Optional European Car OBD Adapters
Optional Diagnostic Adapters for Commercial Vehicle

Standard Kit

G-scan 3 Base Unit
Main DLC Cable
AC / DC Adapter
Cigarette Lighter Cable
AC / DC Power Cable
Carrying Case
Quick Manual
Vehicle Battery Cable
Self Test Cable

Optional Asian Car OBD Adapters

Parts available as optional supply

TOYOTA 17+1P Square
TOYOTA 17P Round
HONDA/ACURA 3P
MAZDA 17P
SUBARU 9P
MITSUBISHI 12P+16P
Kia 20P-A type Connector
Kia 20P-B type Connector
Hyundai & Kia Keyless Connector
NISSAN 14P
Ssangyong 14P
Ssangyong 20P
Daewoo 12P

Optional European Car OBD Adapters

Parts available as optional supply

BMW 20P
AUDI / VW 4P
BENZ 38P

Optional Diagnostic Adapters for Commercial Vehicle

Parts available as optional supply

J1939 9P
Isuzu 20-10-3P
Universal Adapter
Hyundai Commercial 16P
Hyundai Commercial 4P CNG
Kia 6P

Video

2 reviews for G-scan3 – Compact Kit

  1. Shahir Abdul-Tawwab –

    Thanks Automax Tools, i ordered compact kit and i received it registered and update. They have a great support.

  2. Rasim Gashkori –

    I use g-scan 3 in my car garage. Easy to use and this is a good investment for car garage service owners like me.

Add a review

Your email address will not be published. Required fields are marked *

Related Products:

Related products

Need Help? Call our Toll Free Hotline

800-AUTOMAX
automaxtools.me

Information

Categories

Brands

Subscribe to our newsletter

Facebook-f Twitter Pinterest Instagram Youtube

Payment Methods

p logo
Cart
Checkout - $ 0.00
  • 0
  • 1
Scroll to Top

G-scan 3 Main Unit

Description

G1NDDMN002

Base unit in Black

g-scan-3

Main DLC Cable

Description

G1NZDCA001

Main DLC Cable for G-scan 3

main-dlc-cable

AC/DC Adapter

Description

G1CDDPA013

AC/DC (KPL-060F) Adapter

adapter

Cigarette Lighter Cable

Description

G1PDDCA002

Cigarette Lighter Power Cable

cigarette-lighter-cable

AC/DC Power Cable

Description

G1CDECA001

AC/DC Power Cable

ac-dc-power-cable

Carrying Case

Description

G1NDDHA002

Hard Carrying Case

carrying-case

Quick Manual

Description

Expendable Part

Quick Manual in English

quick-manual

Vehicle Battery Cable

Description

G2SDDCA003

Power Cable

vehicle battery cable

Self-Test Cable

Description

G1CDDPA008

Self-Test Cable

self-test-cable

TOYOTA 17+1P Square

Description

G1PZDPA001

Used for communication with old Toyota and Lexus cars with 17+1 pin
“Square (rectangular)” type diagnostic connector in the engine compartment.
toyota-17-1p-square

TOYOTA 17P Round

Description

G1PZFPA002

Used for communication with old Toyota and Lexus cars with the 17-pin “Round (Semi-circular)” type diagnostic connector.
Same appearance as the Mazda 17P adapter, make sure to check the name engraved on the surface.
toyota-17p-round

HONDA/ACURA 3P

Description

G1PZFPA003

Used for communication with old Honda and Acura cars with the 3-pin or 5-pin diagnostic connector.
honda-acura-3p-scaled

MAZDA 17P

Description

G1PZFPA004

Used for communication with old Mazda models.
Same appearance as the Toyota 17P R adapter, make sure to check the name engraved on the surface.
mazda-17p-scaled

SUBARU 9P

Description

G1PZFPA005

Used for communication with old Subaru cars with the 9-pin diagnostic connector.
(Can be excluded from the Asian kit due to regional preferences)
subaru-9p-scaled

MITSUBISHI 12P+16P

Description

G1PZDPA002

Used for communication with old Mitsubishi or Hyundai cars with the 12-pin single or 12+16pin dual diagnostic connector.
mitsubishi-12p-16p

Kia 20P-A type Connector

Description

G1FDDPA001

Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment.
Generally used for ’99 ~ ’02 MY cars.
kia-20p-a-type-connector

Kia 20P-B type Connector

Description

G1FDDPA002

Used for communication with old Kia cars with 20 pin diagnostic connector in the engine compartment.
Generally used for ’03 ~ ’05 MY cars.
kia-20p-b-type-connector

Hyundai & Kia Keyless Connector

Description

G1CDDPA007

Used for some old Hyundai and Kia models that require special connector for keyless entry remote control coding
Hyundai-Kia-Keyless-Connector

NISSAN 14P

Description

G1PZFPA007

Used for communication with old Nissan or Infiniti cars with the 14-pin diagnostic connector.
nissan-14p

Ssangyong 14P

Description

G2WDDCN006

Used for communication with old Ssangyong cars with 14 pin circular diagnostic connector in the engine compartment (Can be excluded from the Asian kit due to regional preferences)
ssangyong-14p

Ssangyong 20P

Description

G2WDDCN007

Used for communication with old Ssangyong cars with 20 pin square diagnostic connector in the engine compartment
(Can be excluded from the Asian kit due to regional preferences)
ssangyong-20p

Daewoo 12P

Description

G2WDDCN008

Used for communication with old Daewoo cars with 12 pin diagnostic connector
(Can be excluded from the Asian kit due to regional preferences)
daewoo-12p

BMW 20P

Description

G1PZEPA001

Used for communication with old BMW cars with the 20-pin circular diagnostic connector.
bmw-20p-scaled

AUDI / VW 4P

Description

G1PZEPA002

Used for communication with old Volkswagen, Audi, Seat or Skoda cars with the 2 X 2 pin diagnostic connector.
AUDI-VW-4P-scaled

BENZ 38P

Description

G1PZEPA012

Used for communication with old Mercedes Benz cars with the 38-pin circular diagnostic connector in the engine compartment.
(Can be excluded from the full kit and replaced with the other optional adapters due to regional preferences)
benz-38p-scaled

J1939 9P

Description

G1PZDPA005

Used for generic communication with SAE J1939 compatible commercial vehicles
J1939-9P-scaled

Isuzu 20-10-3P

Description

G1PZDPA006

Used for communication with old type Isuzu commercial vehicles
Isuzu-20-10-3P

Universal Adapter

Description

G2WDDCN010

Used for communication with the vehicles that are fitted with non-standard OBD adapters that
G-scan’s standard kit adapters are not compatible
universal-adapter-scaled

Hyundai Commercial 16P

Description

G2SDDCA029

Used for most Hyundai and Kia commercial vehicles. Similar to standard OBD2 connector, but the internal wirings are different.
Colored light grey for recognition
Hyundai-Commercial-16P

Hyundai Commercial 4P CNG

Description

G1GDDPA001

4-pin circular connector used specifically for Hyundai CNG (Compressed Natural Gas) buses

Kia 6P

Description

G1CDDPA005

Used for communication with old Kia cars with 6 pin diagnostic connector in the engine compartment.
(Can be excluded from the Asian kit due to regional preferences)
kia-6p
