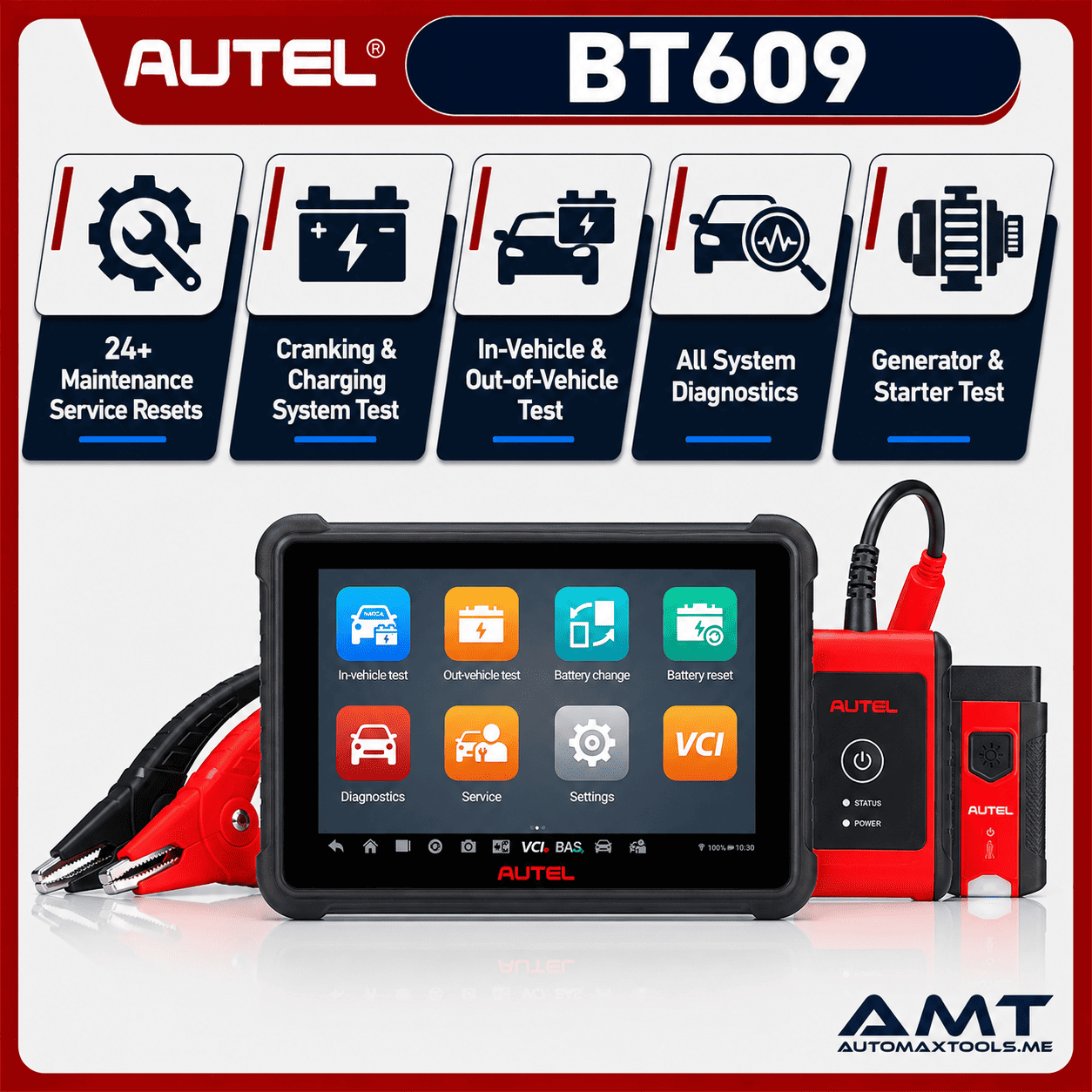

MaxiBAS BT609

Description:

The MaxiBAS BT609 wireless battery and diagnostics system applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The 7-inch Android touchscreen tablet can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT609’s features include AutoVIN to immediately identify vehicle and battery information and to display graphic instructions for battery positioning and testing. Features service menu. Read/Clear codes on all available vehicle systems and perform common maintenance services. Print or share customized reports via Wi-Fi.

SKU MaxiBAS BT609 - Battery Diagnostics Category:
Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on pinterest
Share on email

Features

  1. Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries.
  2. Test 6- and 12-volt batteries: 100 – 3000 CCA
  3. Test 12- and 24-volt cranking/charging systems
  4. Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
  5. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
  6. Quick display of battery specifications through battery barcode scan, auto and manual VIN entry
  7. Illustration instruction guides for battery positioning and testing
  8. Read and erase codes and view Live Data of all available systems
  9. Support maintenance services

Specifications

Item Description
Operating System Android 9.0
Memory 2GB RAM & 64GB On-board   Memory
Display 7.0 inch TFT-LCD   with 1280 x 800 resolution & capacitive touch screen
Connectivity l   Wi-Fi (IEEE 802.11 a/b/g/n/ac   1×1)

l   BT 5.0+EDR+BLE

l   USB 2.0 (1 USB HOST + 1 USB   OTG)

l   Micro SD Card (Support up to 128GB)

Camera 8 Megapixel
Sensor Ambient Light Sensor (ALS)
Audio

Input/Output

l   Microphone

l   Loudspeaker

Power and Battery l   5800 mAh 3.85 V   lithium-polymer battery

l   Charging via 5 V AC/DC power   supply with the temperature between 0°C and 45°C

Input Voltage 5 V / 2 A Adapter
Operating Temp. 0 to 50° C (32 to 122° F)
Storage Temp. -10 to 60° C (14 to   140° F)
Dimensions (WxHxD) 197 mm (7.75″)   x 135 mm (5.31″) x 14 mm (0.55″)
Weight 445   g (0.98 lb.)

Comparison

maxibas-comparison

Download

BT609 Quick Start Guide: Download

Accessories

bt609-accessories
