MaxiIM IM608 PRO II Proven Key programmer 2023

د.إ 11,200.00 د.إ 13,200.00

(1 reviews)

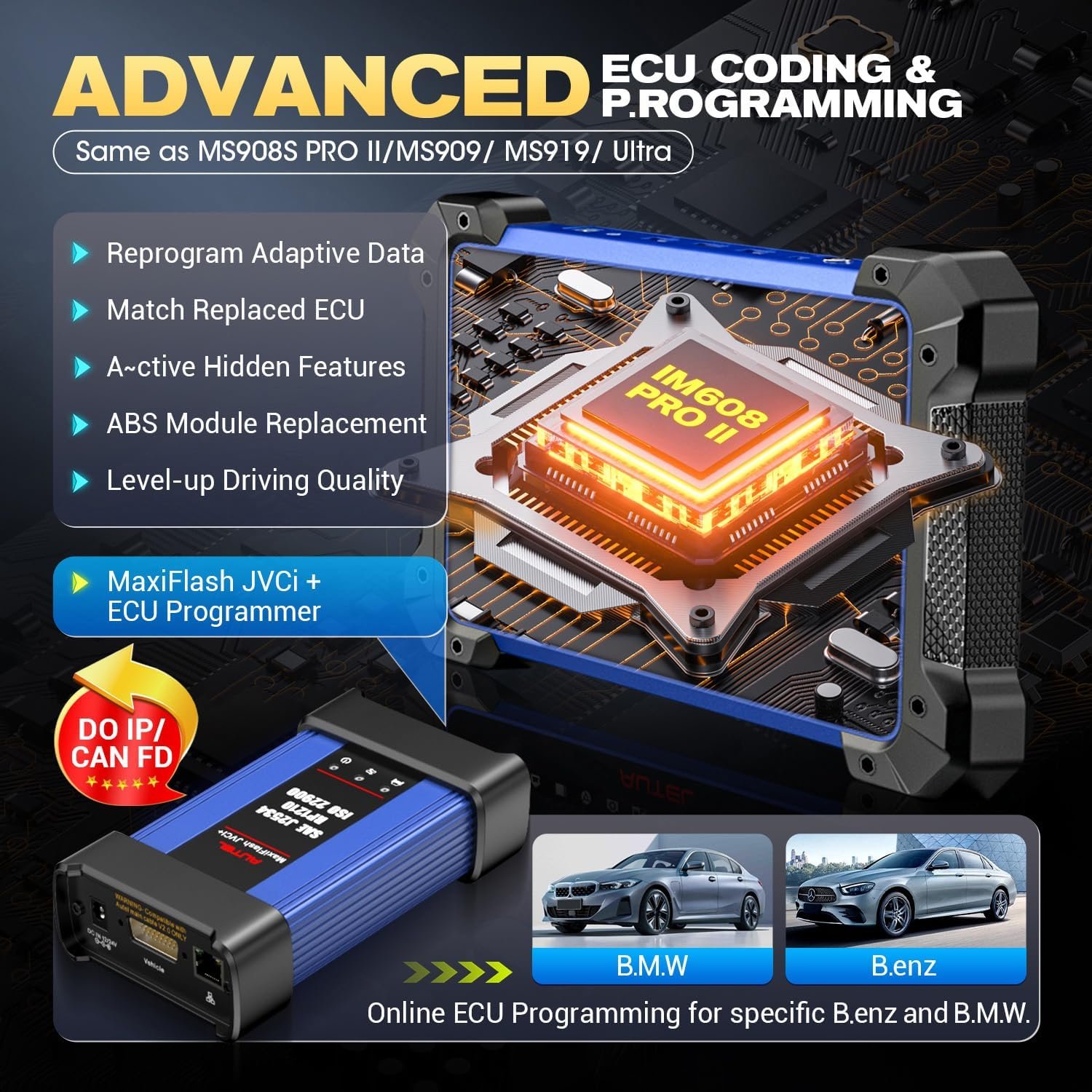

Autel MaxiIM IM608 PRO II Key Programmer Tool With MaxiFlash JVCI+ J2534 ( New Version 2023 )

MaxiIM IM608 PRO II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.

MaxiIM IM608 PRO II features:

  • Advanced key programming tool with integrated IMMO and OE-level diagnostics
  • Effortless retrieval of immobilizer pins and passwords directly from the vehicle
  • User-friendly interface for streamlined navigation and operation
  • Comprehensive 3-year free software updates for continual compatibility
  • Backed by a reliable 1-year warranty for added assurance and peace of mind.

Manual for Autel products : Link

 2 Years Free Software Update / 1 Year Warranty

Order on WhatsApp

Description

Compare Autel IM608 (Pro) II and Autel IM608 Pro

  1. Autel IM608 (Pro) II has improved firmware, Android 10, larger RAM, and ROM, with new JVCI+ VCI.
  2. Autel IM608 (Pro) II supports CAN protocol read and write without a password
  3. Autel IM608 (Pro) II adds built-in DoIP and CAN FD protocol (don’t need a converter)
  4. Autel IM608 (Pro) II supports remote expert functions.

Autel IM608 II Highlights:

  1. Autel IM608 II = IM608 PRO II=IM608S II
  2. Upgraded Version of Autel IM608 and Autel IM608 Pro, with the latest powerful hardware configuration
  3. Smart Mode and Expert Mode Solution In One Tool to Easy Operation
  4. Works for 85% of cars worldwide, Including BMW, BENZ, VW, AUDI, etc. making your work simple and easier, Best Choice for Locksmith and Workshop
  5. Extended to Work with Autel MaxiVideo MV108/ MV105 allowing you to examine difficult-to-reach areas that are normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

Autel IM608 II Features:

  1. IMMO & Key Programming Bundle
  2. MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
  3. Program IMMO & Keys for U.S., Asian, and European Vehicles
  4. XP400Pro Key and Chip Programmer
  5. JVCI Wireless J2534 Pass-Thru Programming Device
  6. Bi-directional Control/ Active Tests

Autel IM608 II Functions:

  1. IMMO Functions

    1. Auto Detect Make/Model/Year/System
    2. Read PIN (All Key Lost)
    3. Key Learning
    4. IMMO ECU Reset/Adaption
    5. IMMO ECU Refresh/Coding
    6. Remote Learning
    7. AUDI Q5/A4/A5 2015-2017 Key Learning
    8. VW MQB Key Learning
    9. BMW FEM/BDC Key Learning and Adaption
    10. BMW CAS4 Key Learning and Adaption
    11. Mercedes Key Learning
    12. 2015-2018 Land Rover & Jaguar write key via dump
    13. Volvo Smart Key Learning/knob-style smart key
    14. Advanced Programming Functions
    15. EEPROM Read/Write
    16. MCU Read/Write
    17. Key Programming
    18. Mercedes Key Read/Write
    19. Remote Frequency Detect
    20. OE-Level Diagnoses
  2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

    1. Oil Service Reset
    2. Parking Brake Pad Relearn After Replacement
    3. Steering Angle Sensor Relearn
    4. Battery Registration and Reset
    5. Diesel Particulate Filter Regeneration
    6. Tire Pressure Monitoring System
    7. Active Test
    8. ECU Coding
    9. VW/Audi Component Protection
    10. Complete Service Functions
  3. XP400 Pro adds support for the following Chips:

    1. APB113 PCF79XX adapter board
    2. APB114 EWS3 adapter board
    3. APB115 NEC Adapter board
    4. APB118 NEC ELV adapter board
    5. APB119 TB28FXXX adapter board
    6. APB120 TMS370 adapter board
    7. APB121 AM29FXXX adapter board
    8. APB122 AM29FXXX adapter board 1
    9. APB123 AM29FXXX adapter board 2
    10. APB126 M35080/D80 adapter board
    11. APB127 MC68HC0(7)05BXX adapter board
    12. APB128 MC68HC05X32 adapter board
  4. Autel MaxiIM IM608 PRO II Advanced Key Programming Functions:

    1. Exclusive Smart Mode to guide Key Programming
    2. Auto Read IMMO Data via OBD
    3. One-tap Key Programming via OBD & Easy-to-use Remote Programming
    4. With the newly upgraded key programmer XP400 Pro
    5. Extensive Vehicle & Functionality Coverage
    6. Support Diagnostics & IMMO Programming for 10,000+ Models;
    7. Support Models Up to 2020;
    8. All System Diagnostics and Advanced Maintenance Services;
    9. Benz — 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
    10. BMW — Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
    11. Volkswagen / Audi — Add Key / All Key Lost via OBD for 2013 – 2020 Models;
    12. GM — Read IMMO Password, Add Key / All Key Lost up to 2020;
    13. Ford — Add Key / All Key Lost (No PIN Needed) up to 2020;
    14. Mazda — Add Key / All Key Lost (No PIN Needed) up to 2020;
    15. FCA — Read IMMO Password, Add Key / All Key Lost up to 2020;
    16. Renault — Add Key / All Key Lost (No PIN Needed) up to 2020
    17. Jaguar LandRover — Add Key / All Key Lost up to 2019
    18. Volvo — Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump

SPECIFICATIONS

Hardware Touch screen tablet & programmer
VCI √ (Bluetooth connection)
Automatic scan
Immo scan
Immo function Support program keys by OBD/on-bench/boot, immo part replacement
Diagnostic function Medium diagnosis, BMW & Benz immo programming
Remote expert √ (coming soon)
Processor Qualcomm SDM660 Octa-core
System Android 10.0
RAM 4G
ROM 128G
Screen 10.1inches, 1920*1200
WiFi
Bluetooth V5.0+BR/EDR
USB USB 2.0 (2 USB host type A, 1 USB mini device)
HDMI HDMI 2.0
SD Card √ (support up to 64G)
Headphone jack
Microphone 1MIC
Loudspeaker 2
GPS
Light Sensation
Buttons 1 power button
Battery 3.8V, 15000mAh
Camera Rear 16 megapixel, AF with a flashlight
Lower computer JVCI+
Programmer XP400 PRO
Connection Bluetooth/USB
Read & write EEPROM
Read & write MCU
Read & write ECU
Read & write immo module
Read & write instrument/ airbag module
Key identify
Read by EEPROM
Refresh key
Detect frequency
Generate transponder √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)
Transponder simulation √ (need APB112)
Detect ignition coil √ (need APB112)
Auto VIN
Read & clear fault codes
Live data
Freeze frame
Read ECU info
Active test
Services
Special function
Online coding
Offline coding
Hidden features
Guidance
Online programming √ (support partial Benz, and BMW models)
Report manage
Other functions Scan VIN, scan license, remote desk.
D-PDU, RP1210, DoIP, CANFD diagnostic standard
Inspection camera √ (MV105/ MV108)

COMPARISON

Item Autel IM608 PRO II/ IM608 II/ IM608S II Autel IM608 PRO/ IM608 Autel IM508 Autel KM100
Hardware Touch screen tablet & programmer Touch screen tablet & programmer Touch screen tablet & programmer Touch screen handset
VCI √ (Bluetooth connection) √ (Bluetooth connection) √ (wire connection) √ (Bluetooth connection)
Automatic scan
Immo scan
Immo function Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD/on-bench/boot, immo part replacement Support program keys by OBD
Diagnostic function Medium diagnosis, BMW & Benz immo programming Medium diagnosis, BMW & Benz immo programming Basic diagnosis ×
Remote expert √ (coming soon) × × ×
Processor Qualcomm SDM660 Octa-core Samsung Exynos T5260 6-Core Rockchip RK3188 Quad core PX30 4x ARM Cortex-A35
System Android 10.0 Android 4.4.2, KitKat Android 4.4.4 Android 9.0
RAM 4G 2G 1G 2G
ROM 128G 64G 32G(64G after 2021) 64G
Screen 10.1inches, 1920*1200 10.1inches, 1920*1200 7inches, 1024*600 5.5inches, 1280*700
WiFi
Bluetooth V5.0+BR/EDR V2.1+EDR ×
USB USB 2.0 (2 USB host type A, 1 USB mini device) USB 2.0 (2 USB host type A, 1 USB mini device) USB 2.0 (1 USB host type A, 1 USB mini device) ×
HDMI HDMI 2.0 HDMI 1.4A × ×
SD Card √ (support up to 64G) √ (support up to 32G) √ (support up to 32G) ×
Headphone jack × ×
Microphone 1MIC 1MIC × ×
Loudspeaker 2 2 × ×
GPS × × ×
Light sensation × ×
Buttons 1 power button 1 power button 1 power button ×
Battery 3.8V, 15000mAh 3.8V, 15000mAh 3.7V, 5000mAh 4950mAh
Camera Rear 16 megapixel, AF with flashlight Rear 8 megapixel, AF with flashlight × ×
Lower computer JVCI+ JVCI All-in-one ×
Programmer XP400 PRO XP400 PRO XP200 V200
Connection Bluetooth/USB Bluetooth/USB All-in-one Bluetooth
Read & write EEPROM ×
Read & write MCU √ (less coverage) ×
Read & write ECU √ (less coverage) ×
Read & write immo module √ (less coverage) ×
Read & write instrument/ airbag module √ (less coverage) ×
Key identify √ (less coverage)
Read by eeprom × ×
Refresh key √ (need XP400 PRO)
Detect frequency √ (need XP400 PRO)
Generate transponder √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO) √ (need XP200, XP201, XP400, XP401, XP400 PRO, XP401 PRO)
Transponder simulation √ (need APB112) √ (need APB112) √ (need APB112)
Detect ignition coil √ (need APB112) √ (need APB112) ×
Auto VIN ×
Read & clear fault codes ×
Live data ×
Freeze frame ×
Read ECU info ×
Action test ×
Services ×
Special function ×
Online coding × ×
Offline coding × ×
Hidden features × ×
Guidance × ×
Online programming √ (support partial Benz, BMW models) √ (IM608Pro supports partial Benz, BMW models) × ×
Report manage ×
Other functions Scan VIN, scan license, remote desk.
D-PDU, RP1210, DoIP, CANFD diagnostic standard
Remote desk, D-PDU, RP1210 diagnostic standard (DoIP/CANFD need adapter) Remote desk, CANFD diagnostic standard(need adapter) ×
Inspection camera √ (MV105/ MV108) √ (MV105/ MV108) √ (MV105/ MV108) ×

PACKAGE LIST

Autel MaxiIM IM608 PRO II Key Programming Tool Package List:

  1. 1pc x IM608 II Tablet
  2. 1pc x XP400 Pro Key Programmer
  3. 1pc x JVCI+ ECU Reprogrammer
  4. 1pc x Carry Case
  5. 1pc x Main Cable
  6. 1pc x USB Cable (2m)
  7. 1pc x Connect Cable
  8. 1pc x Mini USB Cable
  9. 1pc x AC/DC Adapter (12V)
  10. 1pc x AAC001
  11. 1pc x APC101 (USB Cable)
  12. 1pc x APB129 (EEPROM Adapter)
  13. 1pc x APB125 (Mercedes Infrared Collector)
  14. 1pc x APB104 (MCU_FQFP64)
  15. 1pc x APB105 (MCU_FQFP80)
  16. 1pc x APB106 (MCU_FQFP112)
  17. 1pc x APB107 (MCU_FQFP144)
  18. 1pc x APB108 (MCU_FQFP176)
  19. 1pc x APB109
  20. 1pc x APA002 (EEPROM Socket)
  21. 1pc x APA101 (Signal Cable)
  22. 1pc x APA103 (EEPROM Clamp)
  23. 1pc x APA107 (ECU Clamp)
  24. 1pc x APA108 (MCU Clamp)
  25. 1pc x APA109 (MC9S12 Clamp)
  26. 1pc x USB to Ethernet Adapter
  27. 1pc x Packing list
  28. 1pc x Quick reference guide
