• Programs Autel’s IKEY universal key as a smart key replacement for more than 700 vehicles
• Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
• One-Minute Key Generation
• Chip Read & Write, Cloning and Frequency Detection
• AutoVin vehicle identification to ensure accuracy
• Simple User Interface with Concise Instructions
• Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery

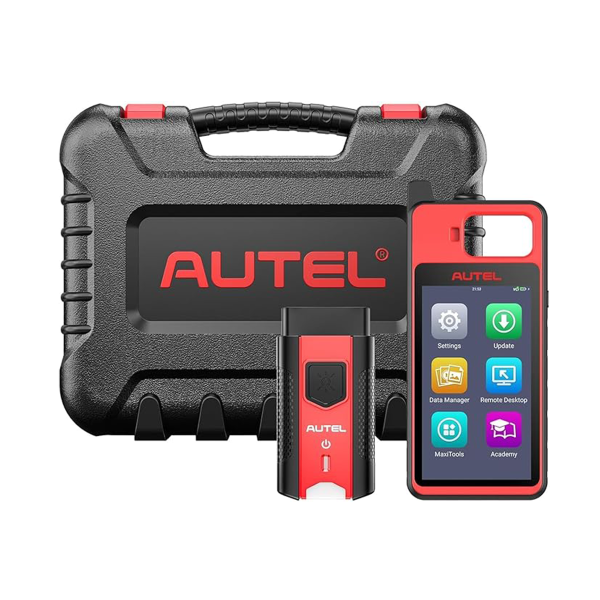

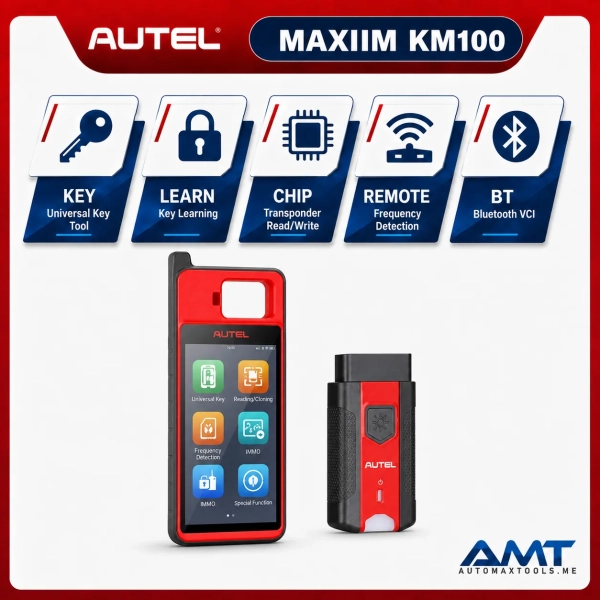

MaxiIM KM100 – IMMO Key Programmer
Description:
MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.
Price:
$ 459.00
- Description
- Specification
- Video
- Autel MaxiIM KM100 Support List
- Autel MaxiIM KM100 Comparison:
- Reviews (0)
Specification
| Dimensions (WxHxD) | 200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”) |
| Weight | 352.7g (0.8 lb) |
| Screen | 5.5-inch screen with 1280 x 720 resolution |
| Processor | Rockchip PX30 (4x ARM Cortex-A35 1.5GHz) |
| Operating System | Android™ 9.0 |
| Memory | 2GB RAM/64GB on-board memory |
| Camera | 8 megapixels |
| Connection | Wi-Fi Bluetooth 5.0 USB 2.0 type C |
| Battery | 4950mAh lithium-polymer battery |
| VCI | V200 |
| Input | 5V/2A |
| Sensor | Ambient light sensor |
| Audio Input/Output | MIC: supported Speaker: supported |
| Operating Temp | -10 to 45°C (14 to 113°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
Video
Autel MaxiIM KM100 Support List
| Make | mode | year | Immo type | FCCID | Frequency(MHz) | Remarks | Note |
| Ford | Mondeo | 2007-2021 | ID49 | M3NA2C31243300 | 903.42 | ||
| Ford | Mondeo | 2007-2021 | ID49 | CMIIT ID:2018DJ2196 | 434.25 | ||
| Ford | B-MAX | 2012-2018 | ID4D | KR55WK48801 | 434.25 | ||
| Ford | B-MAX | 2012-2018 | ID4D | KR5876268 | 434.25 | ||
| Ford | C-MAX | 2010-2019 | ID4D | KR5876268 | 434.25 | ||
| Ford | Mondeo | 2007-2021 | ID49 | CMIIT ID:2014DJ2178 | 868.50 | ||
| Ford | Mondeo | 2007-2021 | ID49 | M3NA2C931423 | 315.00 | ||
| Peugeot | 508 | 2011-2017 | ID4A | OEM:98105588ZD | 433.92 | ||
| Peugeot | 4008 | 2019-2021 | ID4A | OEM:98105588ZD | 433.92 | ||
| Peugeot | 5008 | 2019-2021 | ID4A | iy1dey1 | 433.92 | ||
| Peugeot | Traveller | 2019-2021 | ID4A | OEM:98105588ZD | 433.92 | ||
| Peugeot | Expert | 2019-2021 | ID4A | OEM:98105588ZD | 433.92 | ||
| Peugeot | 508L | 2014-2021 | ID4A | OEM:98105588ZD | 433.92 | ||
| Peugeot | 508 | 2011-2017 | ID46 | CMIIT:2010DJ5052/2013DP8279 | 433.914 | ||
| Peugeot | 308 | 2016-2019 | ID46 | CMIIT:2010DJ5052/2013DP8279 | 433.914 | ||
| Peugeot | 4008 | 2019-2021 | ID46 | CMIIT:2010DJ5052/2013DP8279 | 433.914 | ||
| Kia | SORENTO | 2019-2020 | ID47 | FCCID:TQ8-FOB-4F06 OEM:95440C6100 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2019 | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440C5600 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2021-2022 | ID47 | FCCID:TQ8-FOB-4F23 OEM:95440F1300 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2021-2022 | ID47 | FCCID:TQ8-FOB-4F24 OEM:95440F1200 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2020+ | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440D9100 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2019 | ID47 | FCCID:TQ8-FOB-4F24 OEM:95440D9600 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2019 | ID47 | FCCID:TQ8-FOB-4F23 OEM:95440D9610 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2019 | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440D9500 | 433.92 | All Keys needed for the test | |
| Kia | SPORTAGE | 2019 | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440D9510 | 433.92 | All Keys needed for the test | |
| Kia | NIRO | 2018-2020 | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440G5000 | 433.92 | All Keys needed for the test | |
| Kia | NIRO | 2018-2020 | ID47 | FCCID:TQ8-FOB-4F08 OEM:95440G5100 | 433.92 | All Keys needed for the test | |
| Kia | NIRO | 2018-2020 | ID47 | FCCID:TQ8-FOB-4F24 OEM:95440G5010 | 433.92 | All Keys needed for the test | |
| Hyundai | IONIQ | 2017- | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440G2000 | 433.92 | All Keys needed for the test | |
| Hyundai | IONIQ | 2017- | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440G2500 | 433.92 | All Keys needed for the test | |
| Hyundai | IONIQ | 2018-2020 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440G2010 | 433.92 | All Keys needed for the test | |
| Hyundai | IONIQ | 2019-2021 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440G2110 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2016- | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3100 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2019-2020 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3510 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2015+ | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3000 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2019 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3520 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2018 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3110 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2018 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3010 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2019 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D3500 | 433.92 | All Keys needed for the test | |
| Hyundai | TUCSON | 2019 | ID47 | FCCID:TQ8-FOB-4F11 OEM:95440D7000 | 433.92 | All Keys needed for the test | |
| Hyundai | KONA | 2018- | ID47 | FCCID:TQ8-FOB-4F18 OEM:95440J9000 | 433.92 | All Keys needed for the test | |
| Hyundai | KONA | 2019-2020 | ID47 | FCCID:TQ8-FOB-4F19 OEM:95440J9101 | 433.92 | All Keys needed for the test | |
| Hyundai | SANTAFE | 2019- | ID47 | FCCID:TQ8-FOB-4F19 OEM:95440S1100 | 433.92 | All Keys needed for the test | |
| Hyundai | SANTAFE | 2019-2021 | ID47 | FCCID:TQ8-FOB-4F19 OEM:95440S1000 | 433.92 | All Keys needed for the test | |
| Hyundai | SANTAFE | 2018-2020 | ID47 | FCCID:TQ8-FOB-4F19 OEM:95440S2000 | 433.92 | All Keys needed for the test | |
| Hyundai | SANTAFE | 2019-2021 | ID47 | FCCID:TQ8-FOB-4F29 OEM:95440S1050 | 433.92 | All Keys needed for the test | |
| Hyundai | SANTAFE | 2020 | ID47 | FCCID:TQ8-FOB-4F31 OEM:95440S2200 | 433.92 | All Keys needed for the test | |
| Hyundai | i10 | 2010-2020 | ID46 | FCCID:TQ8-FOB-4F04 OEM:95440B9500 | 433.92 | All Keys needed for the test | |
| Hyundai | i20 | 2019 | ID46 | FCCID:TQ8-FOB-4F04 OEM:95440B4500 | 433.92 | All Keys needed for the test | |
| Hyundai | i20 | 2015-2019 | ID46 | FCCID:TQ8-FOB-4F04 OEM:95440C7000 | 433.92 | All Keys needed for the test | |
| Hyundai | i20 | 2018 | ID46 | FCCID:TQ8-FOB-4F04 OEM:95440C7100 | 433.92 | All Keys needed for the test | |
| Hyundai | i20 | 2011-2017 | ID46 | FCCID:TQ8-FOB-4F04 OEM:95440C8000 | 433.92 | All Keys needed for the test | |
| Hyundai | Tucson | 2011-2020 | ID46 | FCCID:TQ8-FOB-4F03 OEM:954402S610 | 433.92 | All Keys needed for the test | |
| Kia | Ceed | 2010-2020 | ID46 | FCCID:TQ8-FOB-4F02 OEM:95440A2100 | 433.92 | All Keys needed for the test | |
| Kia | Ceed | 2010-2020 | ID46 | FCCID:TQ8-FOB-4F02 OEM:95440A2200 | 433.92 | All Keys needed for the test | |
| Hyundai | i10 | 2020+ | ID4A | FCCID:SVI-BR2FGE03 | 433.92 | All Keys needed for the test | |
| Kia | Sorento | ID4A | FCCID:SY5MQ4FGE07 | 433.92 | All Keys needed for the test | ||
| Kia | Sorento | 2021 | ID4A | FCCID:SY5MQ4FGE04 | 433.92 | All Keys needed for the test | |
| Hyundai | ix20 | 2011-2014 | ID46 | FCCID:SVIMDFEU04 | 433.96 | All Keys needed for the test | |
| Hyundai | i30 | 2010-2016 | ID46 | FCCID:SVIMDFEU04 | 433.96 | All Keys needed for the test | |
| Kia | Sportage | 2010-2020 | ID46 | FCCID:SVIMDFEU04 | 433.96 | All Keys needed for the test | |
| Mitsubishi | RVR (ASX/Outlander Sport) | 2011-2017 | ID46 | 433.92 | |||
| Mitsubishi | Outlander | 2018 | ID46 | 315.01 | |||
| Renault | Koleos | 2018 | ID4A | 433.92 |

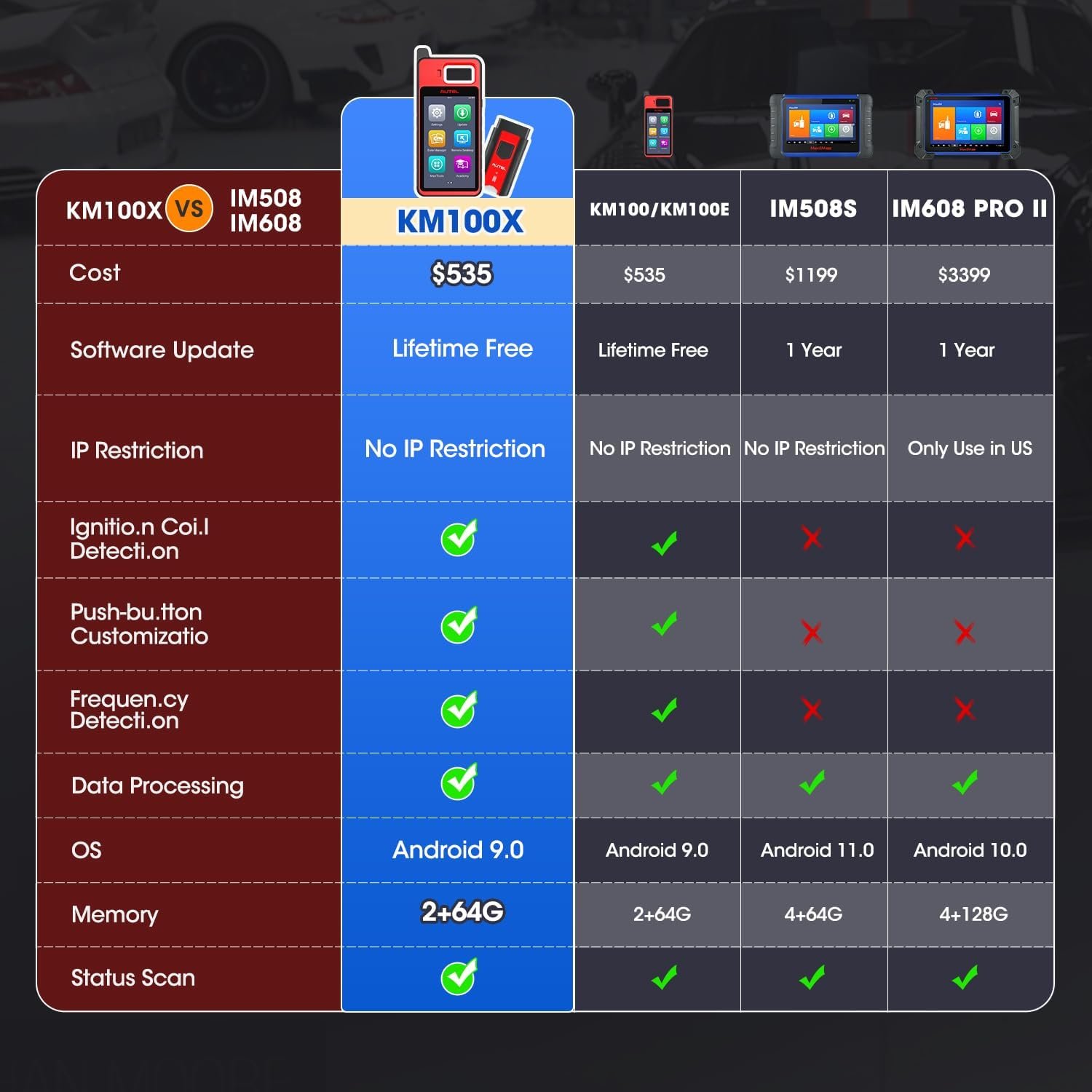

Autel MaxiIM KM100 Comparison:
| Function | Autel MaxiIM IM508 | Autel MaxiIM IM608 | Autel MaxiIM KM100 |
| Universal Transponder & Key Generation | No | No | Yes |
| Transponder Simulation Editing & Cloning | No | No | Yes |
| Ignition Coil Detection | No | No | Yes |
| Vehicle Diagnostics | Yes, Basic function | Yes | No |
| Vehicle Service Functions | Yes | Yes | No |
| IMMO Function via Programmer | Yes | Yes | No |
| Frequency Reading | Yes | Yes | Yes |
| Frequency Detection | Yes | Yes | Yes |
| Key Unlocking/Key Renew | Yes | Yes | Yes |
| Immobilizer Data Processing | Yes | Yes | Yes |
| IMMO in Open OBD mode | Yes | Yes | Yes |
Reviews
There are no reviews yet.
