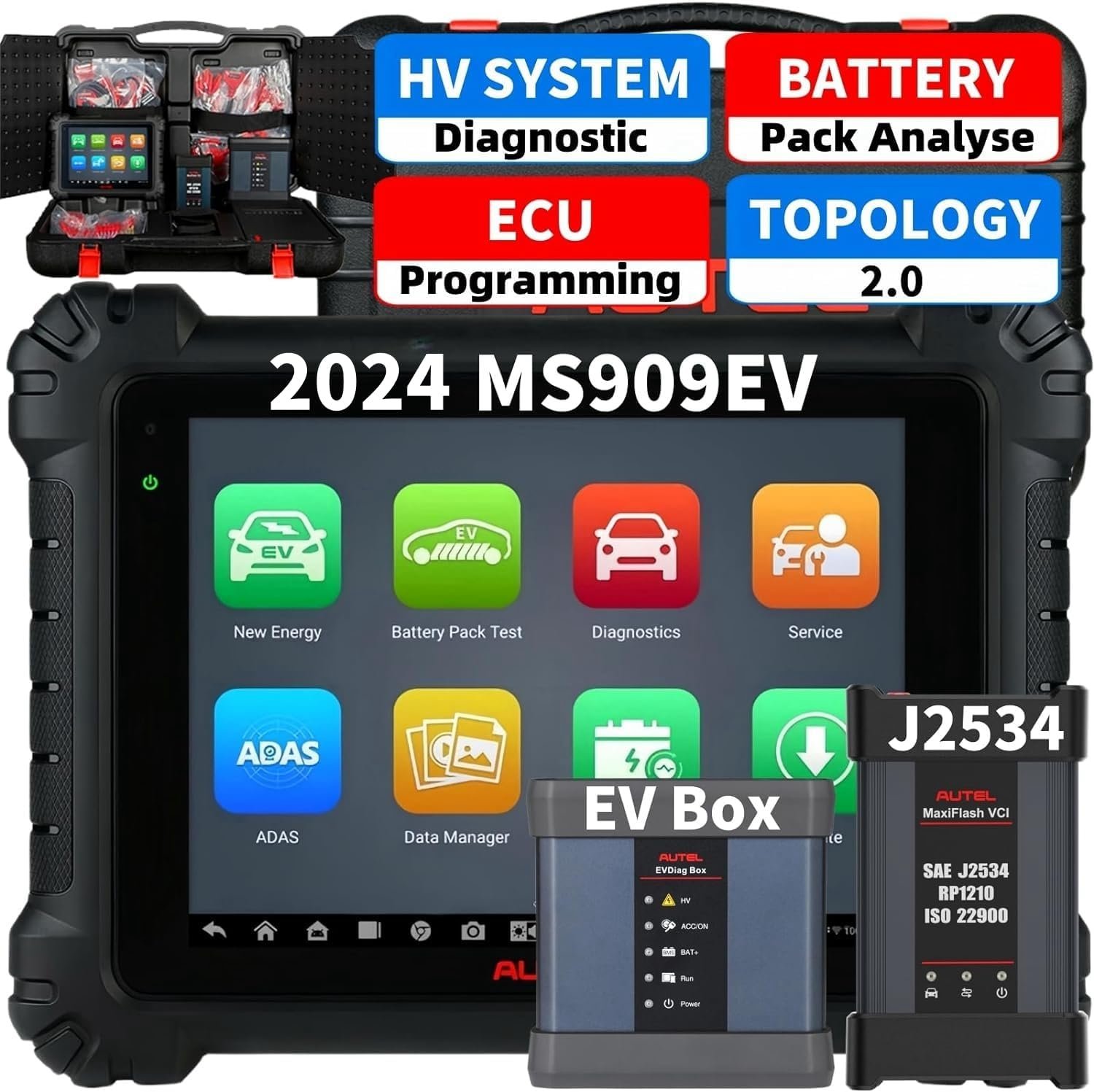

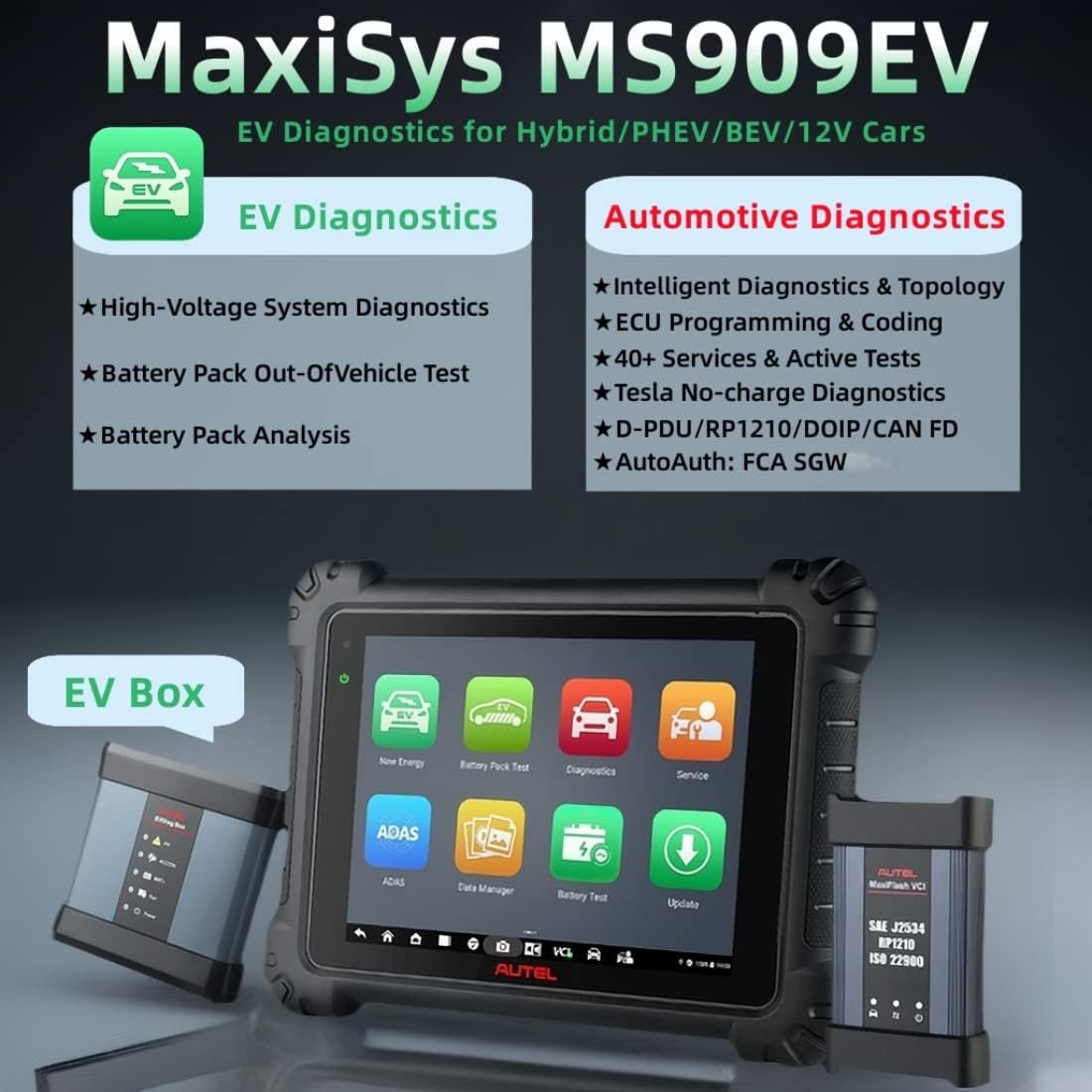

MaxiSYS MS909EV

Description:

Intelligent EV Diagnostics with MaxiFlash VCI/J2534

The  MaxiSys MS909EV  is  a  new generation of intelligent diagnostics for electric, hybrid, gas and diesel vehicles. With its dedicated EVDiag Box, MaxiFlash VCI, and detailed graphics, system information, and step-by-step instructions, the MaxiSYS 909EV  provides a comprehensive approach to advanced electric and hybrid vehicle diagnostics.

Price:

AED 11,400.00

DESCRIPTION

  • Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
  • Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
  • Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions
  • State of Charge and State of Health analysis for true battery condition
  • Battery pack analysis can be performed via OBD or  directly with included specialty cables and jumpers; the 909EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of shop operations to keep all data files, customer info, and vehicle records organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

SPECIFICATIONS

Operating System Android 10.0
Processor Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • Dual Wi-Fi (802.11 a/b/g/n/ac 2×2 MIMO)
  • BT V5.0 + BR/EDR
  • GPS
  • USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 16 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

COMPARISON

MS909EV     Ultra EV MS909     MS919 Ultra
Hardware
Connection Bluetooth MaxiFlash VCI Bluetooth MaxiFlash VCMI Bluetooth MaxiFlash VCI Bluetooth MaxiFlash VCMI Bluetooth MaxiFlash  VCMI
Screen 9.7inch touchscreen 12.9inch touchscreen 9.7inch touchscreen 9.7inch touchscreen 12.9inch touchscreen
Battery 15,000mAh 18,000mAh 15,000mAh 15,000mAh 18,000mAh
Processor 2.2GHz+1.8GHz
octa-core
2.2GHz+1.8GHz
octa-core
2.2GHz+1.8GHz
octa-core
2.2GHz+1.8GHz
octa-core
2.2GHz+1.8GHz
octa-core
Memory 128GB SSD/ 4GB RAM 256GB SSD/ 4GB RAM 128GB SSD/ 4GB RAM 128GB SSD/ 4GB RAM 256GB SSD/ 4GB RAM
Camera 16MP rear/16MP front 16MP rear/5MP front 16MP rear/16MP front 16MP rear/16MP front 16MP rear/5MP front
Docking Station Included Included
EVDiag Box Included Included
Software
Operating System Android 10.0 Android 7.0 Android 10.0 Android 10.0 Android 7.0
Automatic Detection Auto-VIN/Auto-Scan
Scan VIN/Plate Scan
Auto-VIN/Auto-Scan
Scan VIN/Plate Scan
Auto-VIN/Auto-Scan
Scan VIN/Plate Scan
Auto-VIN/Auto-Scan
Scan VIN/Plate Scan
Auto-VIN/Auto-Scan
Scan VIN/Plate Scan
Secure Gateway Access Authorized FCA Access
With AutoAuth   account
Authorized FCA Access

With AutoAuth account

Authorized FCA Access
With AutoAuth account
Authorized FCA Access
With AutoAuth   account
Authorized FCA Access

 With AutoAuth     account

License Plate Reader Available on select vehicles Available on select vehicles Available on select vehicles Available on select vehicles Available on select vehicles
Vehicle Coverage U.S., European and Asian electric, gas and diesel, and hybrid vehicles U.S., European and Asian electric, gas and diesel, and hybrid vehicles U.S., European and Asian electric, gas and diesel, and hybrid vehicles U.S., European and Asian electric, gas and diesel, and hybrid vehicles U.S.,European and Asian electric, gas and diesel, and hybrid vehicles
OBDII Test Modes All 10 test modes All 10 test modes All  10 test modes All 10 test modes All 10 test modes
Service Resets 36 service features 36 service features 36 service features 36 service features 36 service features
Diesel PM Reset  diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium duty vehicles

Reset diesel emissions

Light&medium     duty vehicles

System Diagnostics Access all modules in all systems Access all modules in all systems Access  all modules in all systems Access all modules in all systems Access all modules in all systems
High-voltage System Diagnostics Diagrams of high-voltage system block Diagrams of high-voltage system block
Battery Pack Diagnostics SOC and SOH analysis SOC and SOH analysis
Component Activations Bi-directional control Bi-directional control Bi-directional control Bi-directional control Bi-directional control
Enhanced Functions Coding&adaptations Coding&adaptations Coding&adaptations Coding&adaptations Coding     & adaptations
ADAS Calibration ADAS Upgrade & Frame Kit
Purchase required
ADAS Upgrade & Frame Kit
Purchase required
ADAS Upgrade & Frame Kit
Purchase required
ADAS Upgrade & Frame Kit
Purchase required
ADAS  Upgrade & Frame Kit
Purchase required
Cloud Services Remote programming & Report storage Remote programming & Report storage Remote programming & Report storage Remote programming & Report storage Remote programming & Report storage
Repair Assist Guided procedures with DTC analysis

& fault code solutions

Guided procedures with DTC analysis

& fault code solutions

Guided procedures with DTC analysis

& fault code solutions

Guided procedures with DTC analysis

& fault code solutions

Guided procedures with DTC analysis

& fault code solutions

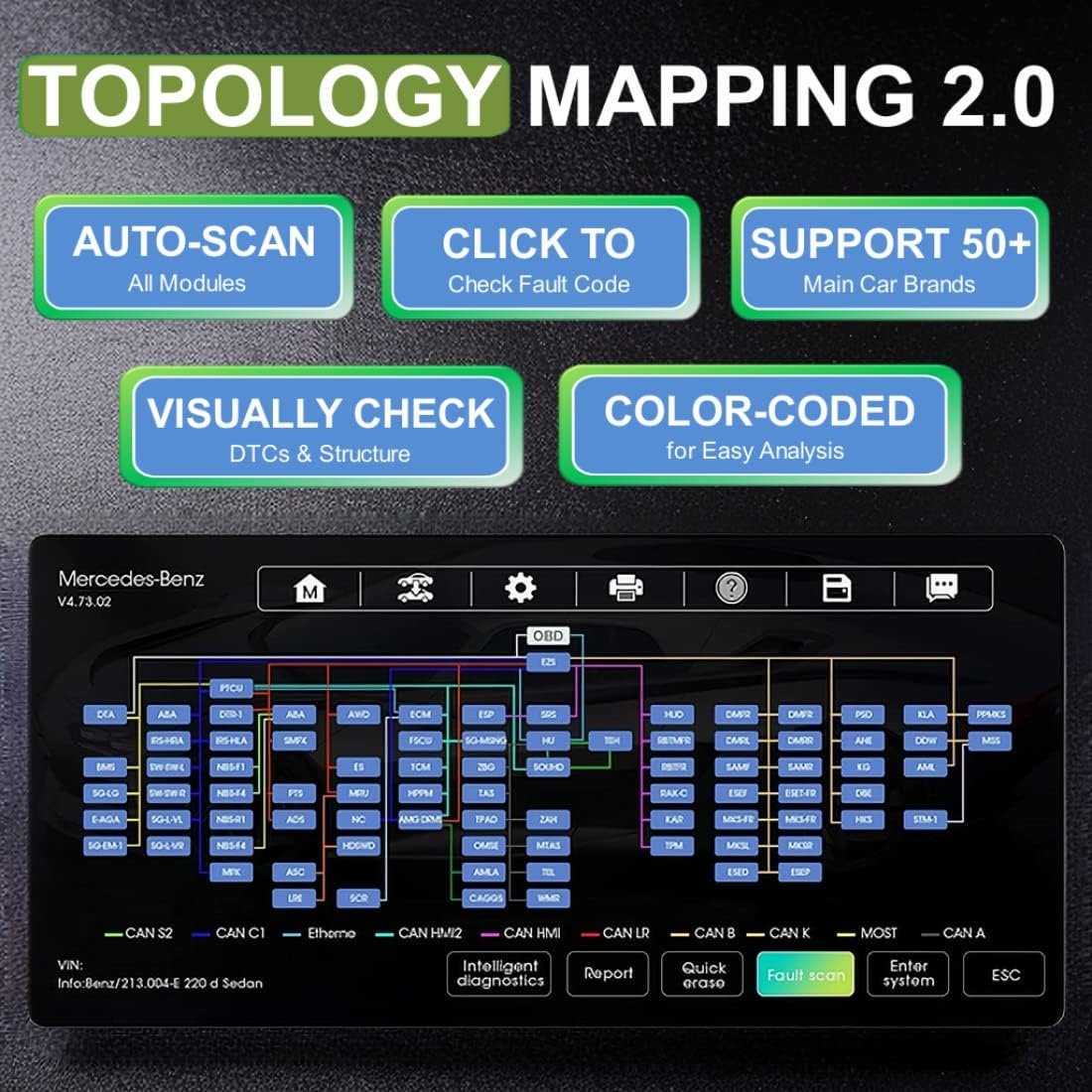

Topology Module Mapping Color coded all system status screen on supported vehicles Color coded all system status screen on supported vehicles Color coded all system status screen on supported vehicles Color coded all system status screen on supported vehicles Color coded all system status screen on supported vehicles
Relevant Cases DTC troubleshooting DTC troubleshooting DTC troubleshooting DTC troubleshooting DTC troubleshooting
Technical Service Bulletins Available on select vehicles Available on select vehicles Available on select vehicles Available on select vehicles Available on select vehicles
Oscilloscope VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester VCMI 5-in-one devic,  VCI multimeter, waveform generator, CAN Bus tester
Split ScreenDisplay View multiple functions at once

DOWNLOADS

  MS909EV_Quick_Guide Download
MaxiSys MS909EV User Manual Download

VIDEO

ACCESSORIES

ms909ev pack list
