MaxiTPMS TS508 + 8 Dual Frequency MX Sensors

Description:

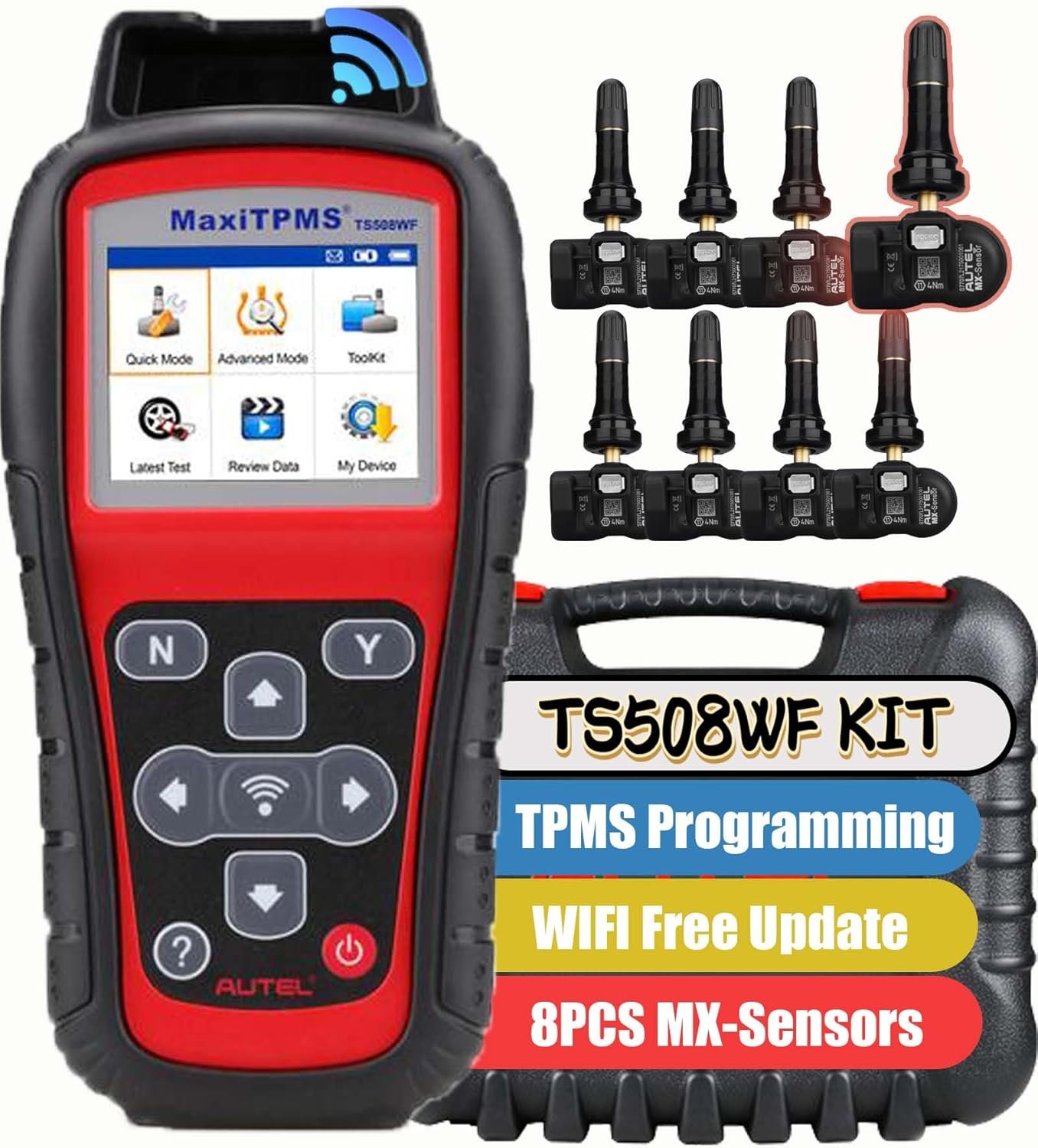

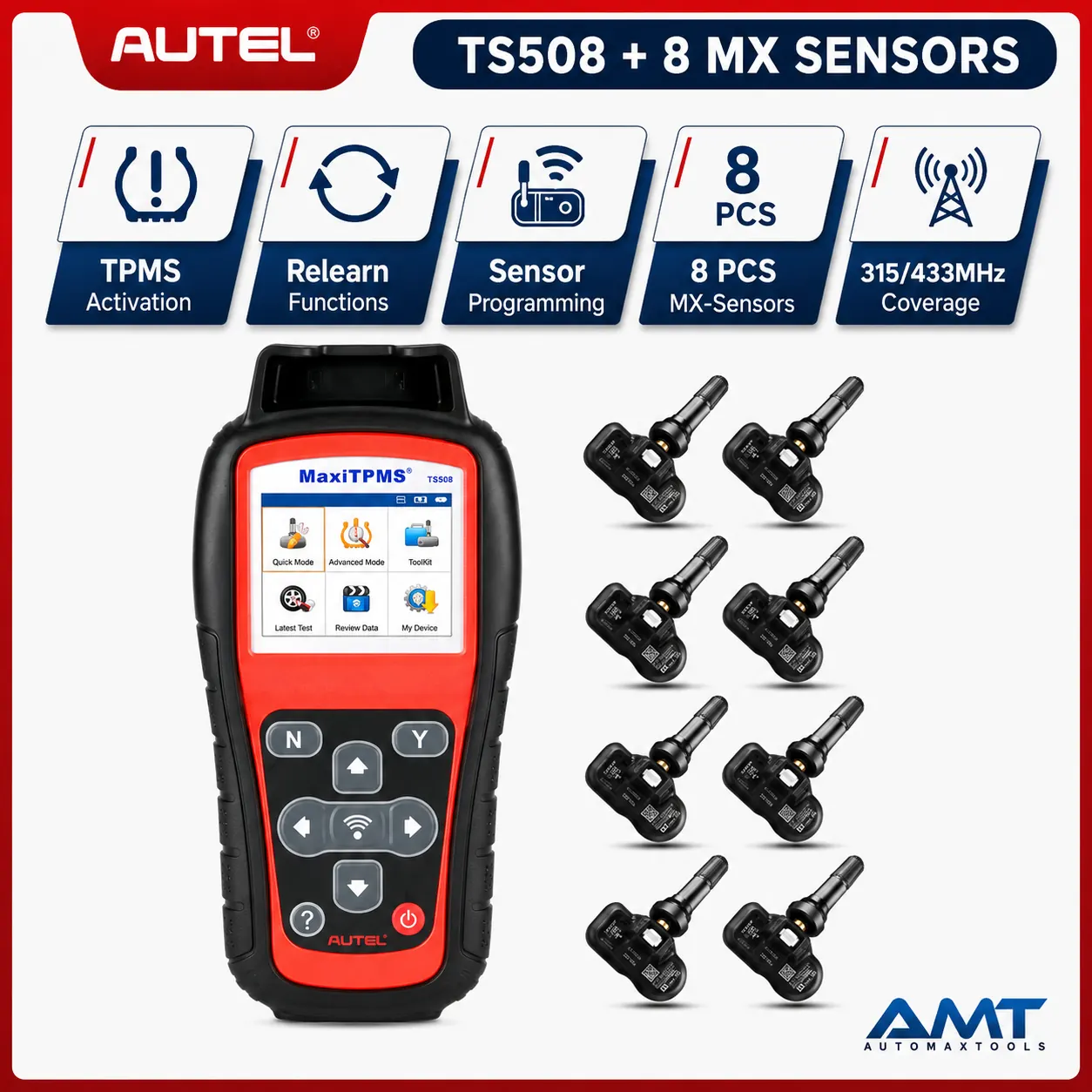

Autel MaxiTPMS TS508 + Autel Dual Frequency MX-Sensors

The Autel MaxiTPMS TS508 is a TPMS diagnostic and service tool with two modes, the Quick Mode and the Advanced Mode. The Quick Mode allows for activation and reading of all known sensors while being able to read sensor ID, tire temperature, tire pressure and battery status. A key fob check can also be done. Advanced Mode allows for all of the same features as Quick Mode, as well as adds the ability to view system faults through the TPMS status screen, program MX-sensors, read and clear DTCs from ECU, perform a sensor position relearn and OBD capable relearn.

Price:

AED 2,373.00

Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on pinterest
Share on email

Features

  • Activates ALL magnetic, frequency and tire deflation triggered sensors on most vehicles sold worldwide.
  • Receives both 315MHz and 433MHz signals.
  • Interprets data including sensor ID, tire pressure, temperature, battery condition, OE part number, and relearn information.
  • Checks Remote Keyless Entry (Key FOB) for transmissions
  • Provides visual and audible responses to confirm sensors are working properly.
  • Accurate diagnosing result – a tool users can trust.
  • Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions.
  • Pre-selection process offers faster activation and diagnostics.
  • Programs both 315MHz and 433MHz MX-Sensors.
  • Displays different sensor relearn procedures for different OEM sensors.
  • OEM sensor information display based on vehicle Make/Model/Year.
  • Displays OBD locations for test vehicles.
  • 2.8″ 320×240 TFT color display.
  • Proper LF signal to prevent being fooled by other RF signals.
  • Built-in rechargeable 3200 mA Li-polymer battery.
  • Free upgrade via USB port.
  • Multilingual support (English, Spanish, French).
  • Saves up to 5 TPMS sensor records for future data review.
  • Automatic power-off to preserve battery life.
  • Modular design allows for future capability expansions.
  • Ergonomic design features strong housing and protective rubber boot.

Specifications

  • Display: TFT color display (320 x 240 dpi)
  • Power: 3.7 V Li-polymer battery; 3200 mAh
  • Operating Temp: 0°C to 50°C (32°F to 122°F)
  • Storage Temp: -20°C to 70°C (-4°F to 158°F)
  • Dimensions: 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
  • Weight: 0.38 kg (0.84 lb.)
