MaxiTPMS TS508 WF – Tire Pressure Monitoring System MX Sensor TS508 MX Sensor Autel MX Sensor Programming MX Sensor 433
د.إ 1,385.00

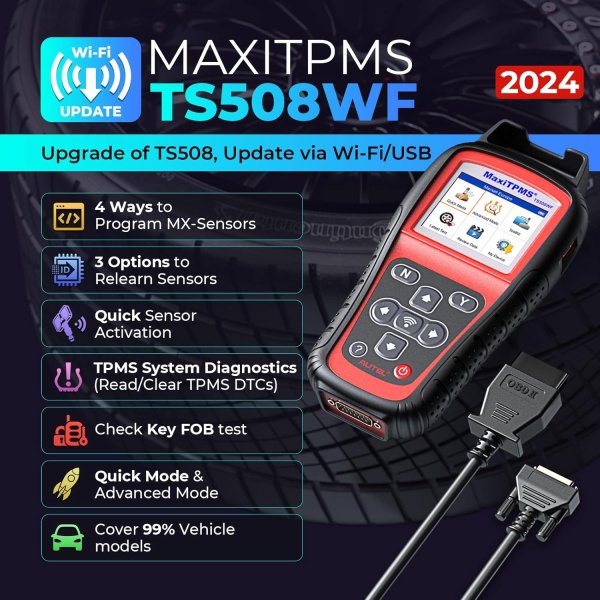

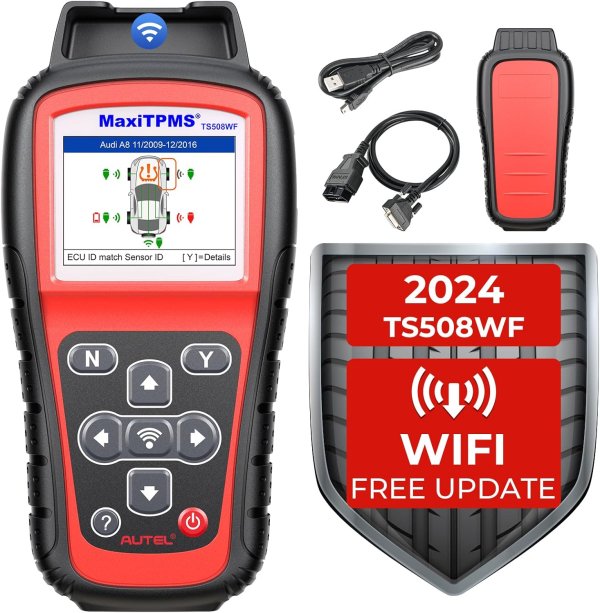

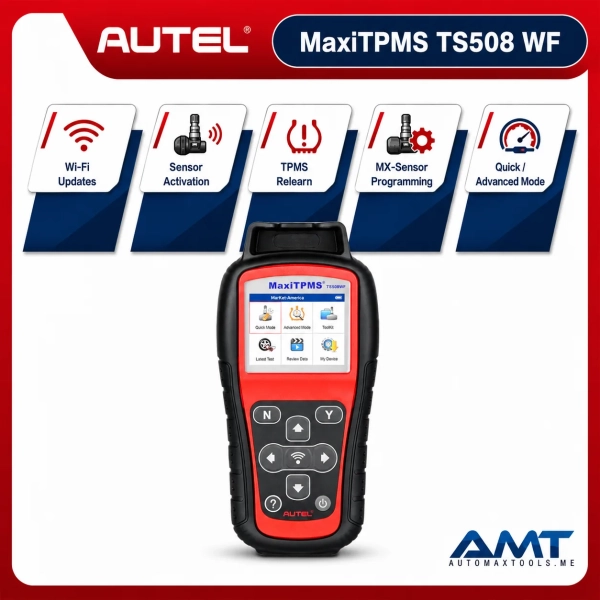

The MaxiTPMS TS508 WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.
Description
TWO TPMS SERVICE MODES
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
QUICK MODE / ADVANCED MODE COMPARISON
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.
EXCLUSIVE TPMS STATUS SCREEN
1.Read ECU sensor ID;
2.Check sensor ID and ECU ID matching condition;
3.Read DTCs from ECU and erase DTCs;
4.View DTCs detail description;
FOUR MX-SENSOR PROGRAMMING OPTIONS
1.Copy By Activation;
2.Copy By Manual Input;
3.Auto Create 1-16;
4.Copy By OBD;
Specifications
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temp. | 0°C to 50°C (32°F to 122°F) |
| Storage Temp. | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”) |
| Weight | 0.39 kg (0.86 lb.) |
| Connectivity | Mini USB 2.0 x 1 |
| Warranty | 1 year |
| Software Update | Free |
Video
Downloads
- TS508 Introduction.pdf
- TS508K Introduction.pdf
- TS508 User Manual V1.00 (ES).pdf
- TS508_PR_07122017(US Only).pdf
- TS508K_PR_07122017(US Only).pdf
- TS508 User Manual V2.1.pdf
- MaxiPCSuite_V1.28.zip
- TS508_Quick Guide_V3.pdf
- MaxiPCSuite_mac_V1.12.zip
- TPMS Diagnose Legend.pdf
- TPMS_Feedback_Form.pdf
- Print Function Operating Guide-TS508.pdf
- TS508_FunctionList_V6.00_AU.pdf
- TS508_FunctionList_V6.00_EU.pdf
- TS508_FunctionList_V6.00_JP.pdf
- TS508_FunctionList_V6.00_KR.pdf
- TS508_FunctionList_V6.00_US.pdf
