Heshbon HL-35F - Double Scissor Lift

Description:

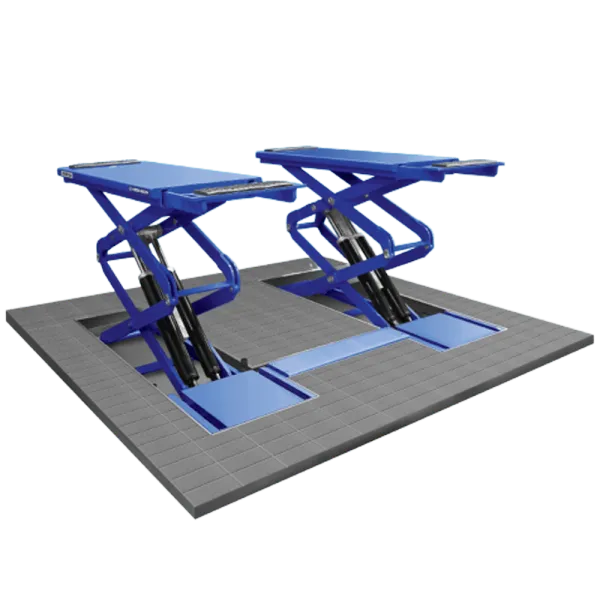

Wheelfree 3.5 Ton Double Scissor Lift

Share on facebook
Share on twitter
Share on linkedin
Share on whatsapp
Share on pinterest
Share on email

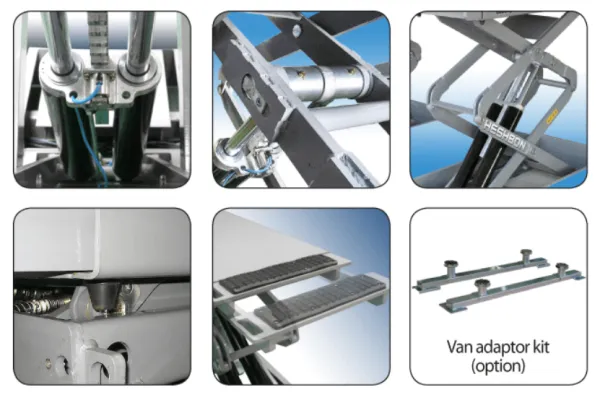

Features

  • Master & Slave cylinder system composed by high-performed durable hydraulic cylinders
  • Easy synchronization control system by special hydraulic valves
  • Air cylinder operated locking device
  • Rubber pads on the platform to protect the vehicle chassis
  • Platforms slide extensions
  • Double scissor link structure for wider platform support
  • Cable remote control low voltage for any vantage point operation (Option)

Specifications

  • Model No.: HL-35F
  • Lifting Capacity (kg): 4,000 kg
  • Max.Lifting Height (mm): F.L. +1900 mm
  • Dimension (mm): 1,940(L) X 2,020(W) X 190(H) mm
  • Power Supply & Motor: 3ph : 2HP X 4P X 220/380V X 50/60Hz
  • Net Weight: 980 kg

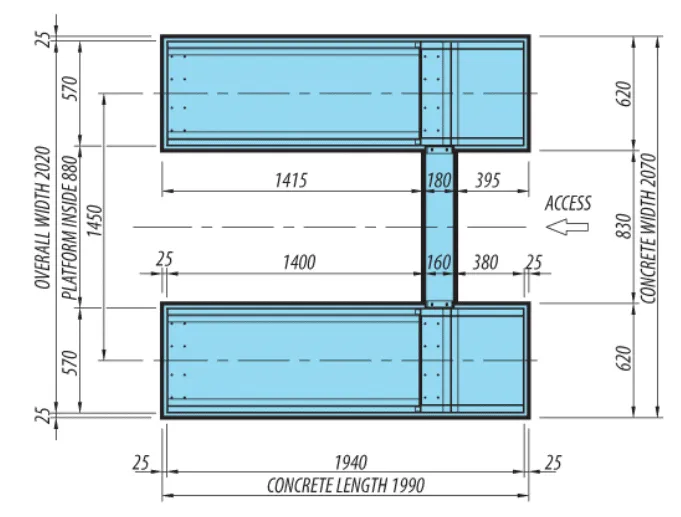

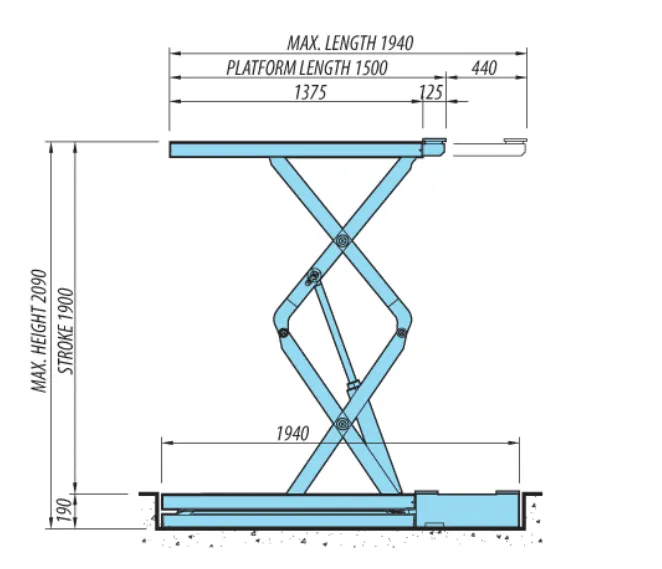

Dimensions

Heshbon HL-35F - Double Scissor Lift 3

Heshbon HL-35F - Double Scissor Lift 4
