Topdon Phoenix Max

د.إ 12,399.00 د.إ 14,399.00

(1 reviews)

Topdon Phoenix Max – Advanced Automotive Diagnostic Tool with Cloud-Based Programming, Comprehensive Protocols, and All-Day Battery Life – Your Expert Companion for Precision Diagnostics and Programming Tasks



TOPDON Phoenix Max is the newest cutting-edge automotive diagnostic scanner. With a 13.3 inches screen, this all-in-one tool offers a wide array of functionalities that will expand any technician’s capacity to complete even more jobs.
The Phoenix Max includes a 4-channel oscilloscope, ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive and heavy-duty vehicles with optional add-on software.

Manual for Topdon products : Link

2 Years of Free Software Upgrades / 1 Year Warranty

Order on WhatsApp

Description

Explore More Features On the TOPDON Phoenix MAX

* 41 maintenance services for mainstream vehicle models.

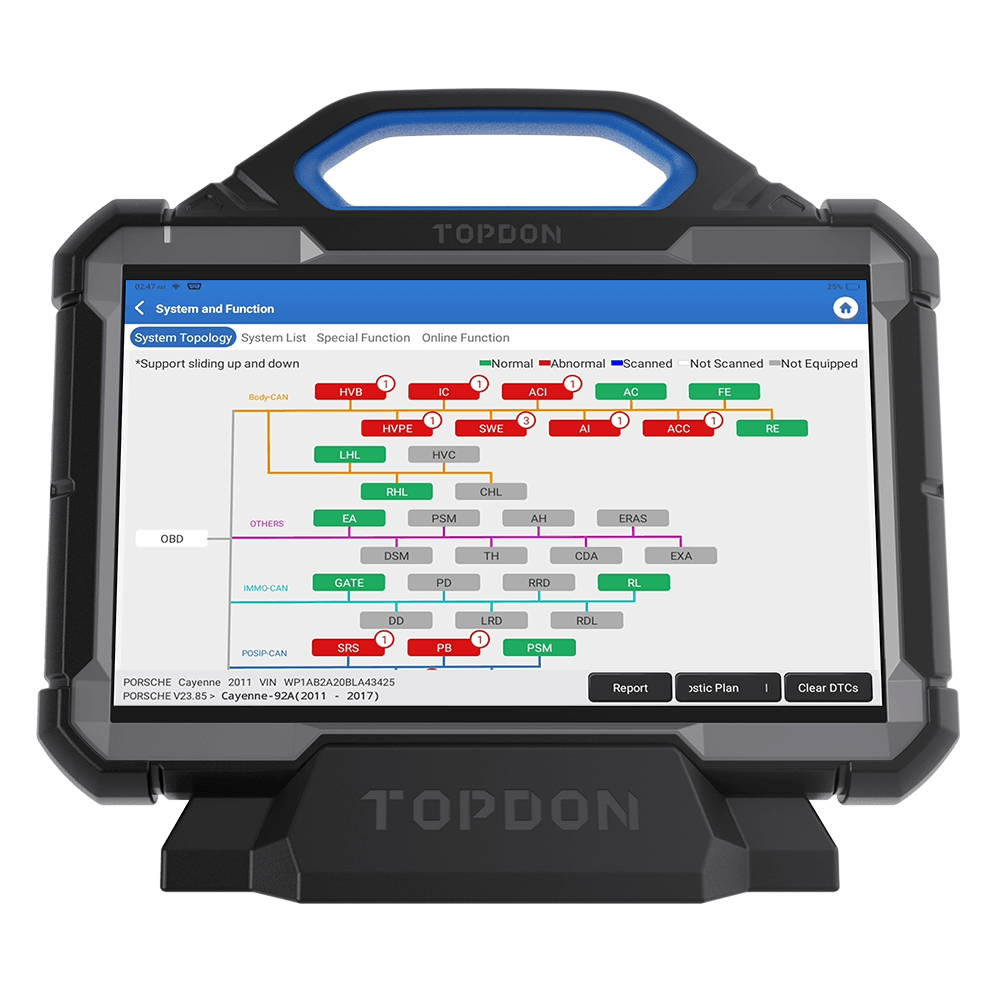

* Topology map granting a clear picture of relational vehicle systems and status.
* Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.
* 5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, active test.
* AutoVIN for automatic vehicle identification.
* Guide Function for VAG.
* The FCA Secure Gateway Module(SGW) unlocks the FCA vehicle, in order to perform functions such as clearing DTCs, bi-directional testing, and calibration.
* Data stream recording for users to play back diagnostic activities

Get More Done

Automotive and Heavy-Duty coverage in one tool, it just makes sense. 2 years of automotive and 1 year of HD updates keep supporting the latest models.
*Heavy-Duty Cables and Software are optional, and sold separately.

Phoenix Scope

The included Phoenix Scope allows you to diagnose component and circuit faults with even more precision. With its color-coded channels, you can analyze and compare multiple components with ease.
Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, pressure/vacuum-related faults, and much more with pinpoint accuracy.

Unparalleled Precision with the Phoenix Scope

In the realm of automotive diagnostics, the Topdon Phoenix Max stands out with its groundbreaking Phoenix Scope. This feature allows professionals to diagnose intricate component and circuit faults with unprecedented accuracy. Using color-coded channels, the Phoenix Scope simplifies the analysis and comparison of multiple components, making it an essential tool for addressing elusive intermittent problems across various automotive systems.

Elevated Performance through Cloud-Based Programming

The Topdon Phoenix Max sets a new standard with its advanced cloud-based programming. Offering seamless compatibility with an extensive array of top automotive brands, including Benz, BMW, Volkswagen, Audi, and more, it empowers professionals to enhance their coding and programming expertise. With tailored online coding for specific brands such as Audi, BMW, and Porsche, the Topdon Phoenix Max becomes an indispensable asset for automotive experts seeking to streamline their diagnostic and programming processes.

Comprehensive Coverage with the Phoenix MDCI Pro

Equipped with the state-of-the-art Phoenix MDCI Pro, the Topdon Phoenix Max supports an impressive range of protocols, including J2534, DoIP, CanFD, D-PDU, and RP1210. This comprehensive protocol support allows professionals to offer OE-level services for a wide spectrum of modern vehicles, eliminating the need for outsourcing and reinforcing their proficiency in handling complex automotive systems.

Enhanced Productivity with the Big Display and All-Day Battery Life

The Topdon Phoenix Max boasts a large 13.3-inch display with a crystal-clear 1920 x 1200 resolution, 8GB of RAM, and a generous 256GB of storage, all operating seamlessly on the Android 9 platform. These high-performance specifications are tailored to handle complex and demanding automotive tasks, ensuring professionals can navigate diagnostics and programming processes swiftly and efficiently, thus optimizing overall productivity and work output.

Reliability Throughout the Day

With a robust 18600mAh, 3.8V battery, the Topdon Phoenix Max provides an exceptional run-time of up to 8 hours. This substantial battery life ensures professionals can rely on the device to consistently deliver exceptional performance throughout the day, even during prolonged diagnostic and programming sessions. Additionally, the inclusion of a convenient docking station ensures that the Topdon Phoenix Max remains charged and readily accessible at all times, reaffirming its position as an indispensable companion for automotive professionals seeking seamless functionality and consistent reliability in their daily operations.



Extended Capability

Compatible with Phoenix Mobile ADAS, BTMobile Pros, and T-Ninja Box.



Remote Technical Support: Experience peace of mind with our reliable remote access technical support troubleshooting service. Our dedicated team of experts is readily available to provide prompt assistance and guidance whenever you encoun

Specification

PHOENIX MAX SPECS

  • Display: LCD 13.3 inches, 1920 x 1200 pixels
  • CPU: 8-Core Processor, 2.0 GHz, Android 9.0
  • RAM: 8G
  • ROM: 256G
  • Battery: 18600 mAh / 3.8V
  • Operating Voltage: 9~18V
  • Storage Temperature: -20℃~60℃(-4℉~140℉)
  • Working Temperature: 0℃~50℃(32℉~122℉)
  • Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)
  • Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)
  • Net Weight: 3.18kg(7.0 lb)
  • Multilingual Support: 24 Languages
    English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

PHOENIX MDCI PRO SPECS

  • CPU: Cortex-A7 + Cortex-M7, Dual Processor
  • Operating System: Linux
  • RAM: 256M
  • ROM: 8G
  • Display: TFT, 3.97 inches, 320 x 480 pixels
  • Wi-Fi: 2.4GHz/5GHz, Dual Band
  • Working Temperature: 0℃~50℃(32℉~122℉)
  • Operating Voltage: DC 9~36 V
  • Dimensions: 196 x 135 x 42.8 mm(7.72 x 5.31 x 1.69”)
  • New Protocols Supported: J2534, CAN FD, DOIP, D-PDU, RP1210

PACKING LIST

  • Phoenix Max
  • Base
  • Phoenix MDCI PRO
  • Phoenix Scope
  • MDCI PRO CAB Male to Diagnostic Cable
  • Clipper Cable ( LCDSS )
  • Fuse ( AC250V/5A, φ5x20mm ) * 4
  • MDCI PRO CAB Type A to B Cable
  • Cigarette Lighter Cable
  • Fuse ( AC250V/5A, φ6x30mm ) * 2
  • BZ-38 ( BENZ )
  • TA-17 ( TOYOTA )
  • B-20 ( BMW )
  • HA-3 ( HONDA )
  • OBD I Adaptor
  • Charging Cable
  • TA-22 ( TOYOTA )
  • G/V-12 ( GM/VAG )
  • CR-6 ( CHRYSLER )
  • NN-14+16 ( NISSAN )
  • M/H-12+16 (MITUBISHI/HYUNDAI)
  • Adaptor
  • AC Cable (US)
  • Mini-HDMI to HDMI
  • 3-in-1 Charger (Matched with U.S., U.K. and Europrean plugs)
  • FT-3 (FIAT)
  • AC Cable (EU)
  • AC Cable (UK)
  • Type A USB to Type C
  • Ethernet Cable

WARRANTY

  • 2 Years of Free Software Upgrades / 1 Year Warranty

Comparison

Comparison
ModelPhoenix SmartPhoenix MaxPhoenix Remote
CPUMT6761, 4-Core 2.0GHzMT8788, 8-Core 2.0GHzMT6761, 4-Core 2.0GHz
RAM4G8G4G
ROM128G256G128G
Battery Capacity12600 mAh/3.8V18600 mAh/3.8V12600 mAh/3.8V
Android VersionAndroid 10.0Android 9.0Android 10.0
Screen Size10.1 inches13.3 inches10.1 inches
Screen Resolution1280×8001920x12001280×800
Wi-Fi2.4 & 5 GHz2.4 & 5 GHz2.4 & 5 GHz
CameraRear 8.0 MPRear 13 MPRear 13 MP
Weight1.55 kg (3.42 lb)2.92 kg (6.44 lb)1.84 kg (4.06 lb)
Cloud-Based Programming15 Brands15 Brands15 Brands
Remote DiagnosticXX
Remote Desktop
CommunicationVCI/BluetoothVCI/Bluetooth/Wi-FiLine
ADAS Compatibility
Oscilloscope CompatibilityX
Battery Tester CompatibilityBTMobile ProsBTMobile ProsBTMobile Pros
Service Functions414141
Auto VIN
Full-System Diagnostic
Diagnostic Topology Display
Diagnostic Protocols: D-PDU/J2534/RP1210
Bus Protocols: DoIP/CAN FD
Heavy Duty (Optional)
Software Languages242423

Downloads

Apps

TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534 protocols.

Interface Driver and J2534 DLL ( Compliant with SAE J2534 standard DLL dynamic link library file) are integrated in the J2534 Plus installation file.

After the download is complete, decompress the driver installation package. There are driver installation files and operation manuals in the compressed package.

J2534 Plus
Requires Windows 10 or later



Documents

Phoenix Max_Product Profile
Phoenix Max_Sell Sheet
Phoenix Max_User Manual

Video

Accessories

Accessories

Phoenix Max
Phoenix Max

Packing Box
Packing Box

Carrying Case
Carrying Case

AC Cable(EU)
AC Cable(EU)

AC Cable(UK)
AC Cable(UK)

AC Cable(US)
AC Cable(US)

Adaptor
Adaptor

Base
Base

BNC to 4mm Test Leads
BNC to 4mm Test Leads

BZ-38(BENZ)
BZ-38(BENZ)

Cigarette Lighter Cable
Cigarette Lighter Cable

Clipper Cable
Clipper Cable

CR-6(CHRYSLER)
CR-6(CHRYSLER)

Crocodile Clips
Crocodile Clips

Ethernet Cable
Ethernet Cable

FT-3(FIAT)
FT-3(FIAT)

Fuse (AC250V/5A, φ5*20mm) 4 PCS
Fuse (AC250V/5A, φ5*20mm) 4 PCS

Fuse (AC250V/5A, φ6*30mm) 2 PCS
Fuse (AC250V/5A, φ6*30mm) 2 PCS

G/V-12(GM/VAZ)
G/V-12(GM/VAZ)

HA-3(HONDA)
HA-3(HONDA)

M/H-12+16(MITSUBISHI/HYUNDAI)
M/H-12+16(MITSUBISHI/HYUNDAI)

MDCI Pro
MDCI Pro

MDCI Pro Male to Male Diagnostic Cable
MDCI Pro Male to Male Diagnostic Cable

MDCI Pro Type A to B Cable
MDCI Pro Type A to B Cable

Mini-HDMI to HDMI
Mini-HDMI to HDMI

NN-14+16(NISSAN)
NN-14+16(NISSAN)

OBD I Adaptor
OBD I Adaptor

Package List
Package List

Password Letter
Password Letter

User Manual
User Manual

Phoenix Scope Box
Phoenix Scope Box

Phoenix Scope Probe Assembly User Manual
Phoenix Scope Probe Assembly User Manual

Phoenix Scope Back Probe Pins Suite
Phoenix Scope Back Probe Pins Suite

Phoenix Scope Probe Assembly
Phoenix Scope Probe Assembly

Phoenix Scope Quick Start Guide
Phoenix Scope Quick Start Guide

Phoenix Scope
Phoenix Scope

Power Adapter
Power Adapter

TA-17(TOYOTA)
TA-17(TOYOTA)

TA-22(TOYOTA)
TA-22(TOYOTA)

Type A USB to Type C
Type A USB to Type C

USB Cable (optional)
USB Cable (optional)
