Zenith Z5

Zenith Z5 12/24V diagnostic tool, Upgrade Version of G-scan 3

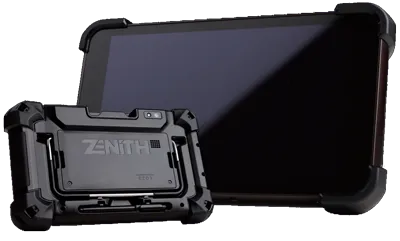

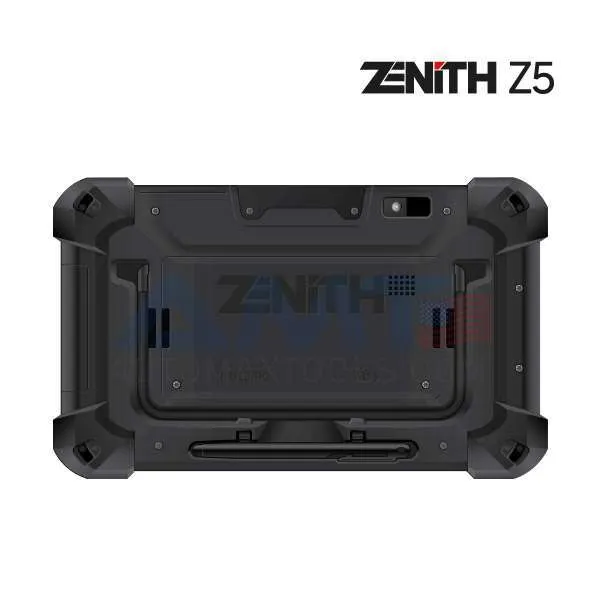

Zenith Z5 1

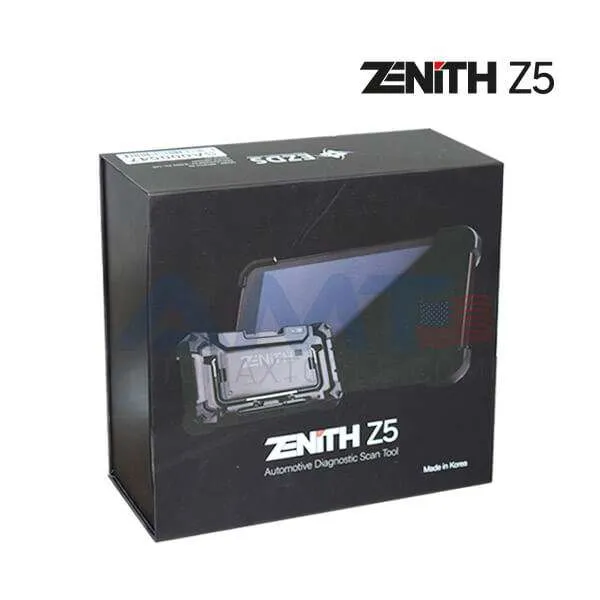

Zenith Z5 Diagnostic Tool Package Box

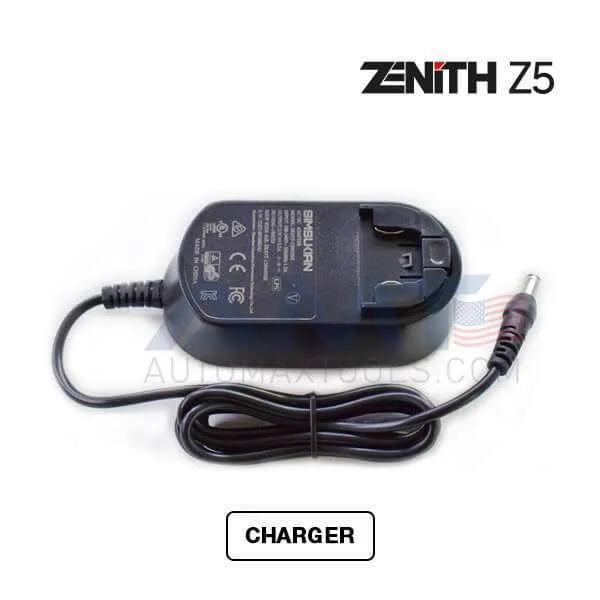

ZENITH Z5 Charger cable

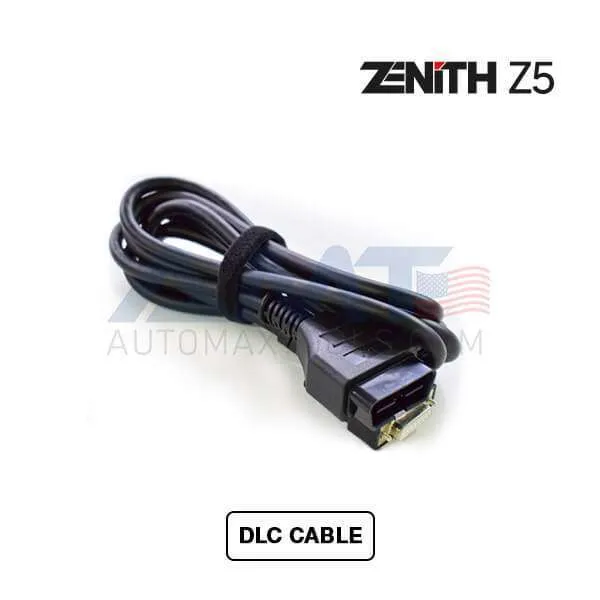

ZENITH Z5 Diagnostic Tool Accesories . dlc cable

Description:

(2 customer reviews)

The Zenith Z5 12/24V Automotive Diagnostic Scan Tool from the Manufacturer of G-Scan 3 (EZDS)

Built around an Android OS with an Octa-core 2.0 GHz CPU, integrated with advanced diagnostic features and unparalleled functions, the new Zenith Z5 will provide you with the ultimate user experience.

Price:

AED 5,200.00

SKU Zenith Z5 Categories: , , , Tags: , ,

specification

HARDWARE SPECIFICATION :

CPU Exynos 7420 Octa Core @ 2.1 GHz
Operating System Android 9
System Memory 3G / Internal 32G
External Memory Micro SD Card
LCD 8.0 inch FHD (1920×1200)
Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Volume+, Volume-)
Camera 8 Megapixel auto-focus with LED flas
Sound Loud Speaker, 1 microphone; 3.5 pi standard audio jack
Rechargeable Battery Li-ion 3.8V 3200 mAh
Operating Voltage DC9~30V
Sensors Ambient Light, Proximity, Gyroscope, Accelerometer
Dimension 225x136x33 mm
External Port USB 2.0 1ea, USB 3.0 2 ea
Network RJ45 Ethernet, Wifi 802.11 a/b/g/n, Bluetooth 4.2

AC/DC ADAPTER :

Input Power 100~240V AC
Frequency 50/60 Hz
Input Current 1.5 A
Output Voltage 12V DC
Output Current 3.2 A

SUPPORTED COMMUNICATION PROTOCOLS :

CAN (High Speed, Low speed, single)
ISO-9141, ISO-9141-CARB, KWP-2000
SAE-J1708, SAE-J1587
J1850 (PWM/VPW)
Melco Pull-Down

FEATURES

Zenith-Z5-Octa Core Processor

Higher Performance CPU

Zenith Z5 come with a powerful octa-core 2.0 GHz processor for optimum diagnostic performance and fast operation to perfectly manage workshop conditions.

Zenith-Z5 operating system

Smarter and Faster Operating System

Zenith Z5 Based on Android 9 OS providing quick boot-up, multi-tasking, fast networking and enhanced system security.

Capacitive Touch Screen on 8” LCD

Zenith Z5 comes with Eyellumicate Display LCD provides crystal clear view in both indoors and out, offering field-optimized display under bright workshop environment.

Zenith-Z5-system memory

Extensive Storage Capability

The internal flash of 32 GB accommodates software applications and data for all brands with room to spare, and the external memory space.

Zenith-Z5-Technical Icon

Powerful Software

Zenith Z5 Diagnostic software programmed by engineers with automotive technicians in mind. Regular and urgent on-demand software updates bring diagnostic confidence to the user.

Pre & Post Diagnostic Report

An intuitively designed diagnostic report function for fast and easy creation of the report on pre and post scan results.

24V Commercial Vehicles

Zenith Z5 hardware accepts power & signals of 24V system, and supports bi-directional communications with commercial trucks and buses.

Wireless Connectivity

Zenith Z5 offers robust connectivity allows for smart updates, quick feedback, Teamviewer Support, Bluetooth printing, browsing and much more.

J2534 Pass-thru

Zenith Z5 functions as a J2534 ‘Pass-Thru’ device for programming the ECUs for multiple carlines.

Zenith Z5 Battery Capacity

Rechargeable Battery

Equipped with a rechargeable 3200 mAh battery. Besides the possibility to use the Zenith Z5 without an external power supply for hours.

Zenith-Z5 display Touch

Smart Touch

Eyellumicate Display technology enhances touch functionality and allows technicians to perform tasks with work gloves on under any harsh workshop conditions.

Zenith-Z5 Compact design

Compact Design

Compact, yet rugged. Ergonomic size to hold in one hand for long periods of time. Zenith Z5 is a light weight scan tool ( 680g or 1.5 lbs.) with slick, ruggedized design.

Diagnostic Features

Simple, Yet Intuitive Layout

Zenith Z5 offers a simple iconic main menu for easier and quick access
to desired functions. With 3 display modes, the user can customize the
theme and button locations.

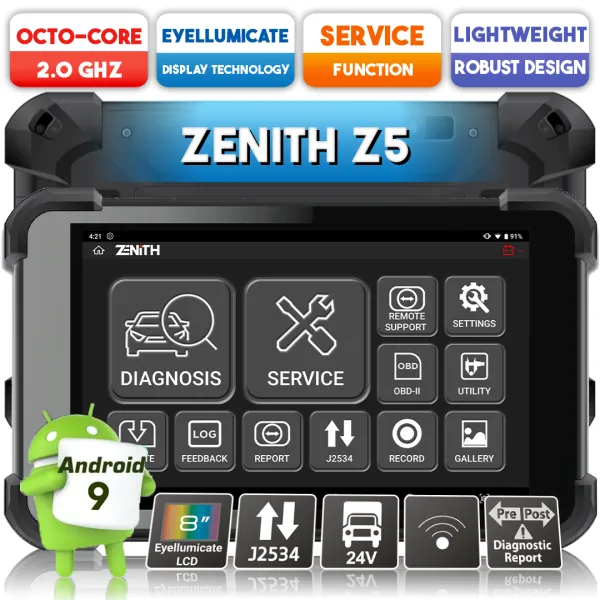

Zenith Z5 Main Screen

Service Function

Time is money. Zenith Z5 offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.

Auto Selection

Zenith Z5 offers option to automatically detect the vehicle information including the VIN number, model year, model name, engine type, and other necessary information that are retrieved.

Zenith Z5 Auto selection

Quick System Search

‘System Search’ option automatically scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected systems.

Data Log & Feedback System

In case of communication or function error, user can log the bi-directional data transmission between the tool and vehicle control systems. This log can be sent to the software development team via the log capture & transfer functions. the data log files recieved will be analyzed, feedback will be passed on, and a patch file update provided if necessary, often within 24 hours of recieving the report, during working days. ( Exceptions may apply )

Zenith Z5 data log

Pre & Post Diagnostic Report

Z5 offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only you can save the reports as a PDF file in the Internal/extenal memory, also with the help of its robust network connectivity, you can print the report directly with a bluetooth printer or send them to desire E-mail address.

Zenith Z5 Diagnostic Report

J2534 Pass-thru

Zenith Z5 acts as a J2534 Pass-thru device for multiple car manufactures with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming & diagnostics ( Exceptions may apply ).

Zenith Z5 J2534 Pass-thru

Fast & Responsive Graphing Mode

Z5 offers fast and intuitive graphing mode which instantly self-adjusts maximum and minimum scale; enabling the users to observe and compare live data more efficiently.

Zenith Z5 Fast & Responsive Graphing Mode

Full Text Description

No more acronyms and cutting of significant texts. Z5 offers the long-text DTC descriptions in full screen, so you get all the information you need.

Zenith Z5 Full Text Description

Smart Update

Z5 offers quick and easy software update with its strong network connectivity. Previous or latest software versions for each carline can be download ed directly from the server, as per user prefrence.

Zenith Z5 Software Update

2 reviews for Zenith Z5

  1. Amani Aguinaldo –

    Recently got my Zenit Z5 from Automax Tools to Philippines. The tool is doing wonderful jobs for my workshop over here, it also supports 12V and 24V. And the main part is there is no IP restriction for Zenith Z5, which made me save a lot of money. I would suggest this is the best tool to use over here in Philippines.

  2. Stefan Waine –

    Zenith Z5 is a good tool. Also very good support from the staff regarding payment, shipment and after sales. Cheers to the team.
